KUKAI Beta Automatic Key Cutting Machine

Description

New function of Beta machine

1. Support to duplicate double-track internal groove and triple-track internal groove keys;

Note: This function are working on Beta machine that the 7th number is “6” e.g. EW18016001



2. Support to export and import data

A. You can export your data under Cut history or/and favorite to the cloud

B. You can input the serial number and code to import the exported data to the re-download APP.

And when to use?

• Log in the APP in another cellphone
• Before delete and re-download APP
• Share data to other persons

3. Support to cut Non-conductive keys

Such as plastic HU66 key blank for Volkswagen Magotan and aluminum HU101 key balnk for Volvo V60, Land Rover and Jaguar

Take HU66-ID: 909 (Bitting number: 33431222) as an example

Note: If you don’t have bitting number, you can try to use “Photograph” function to decode

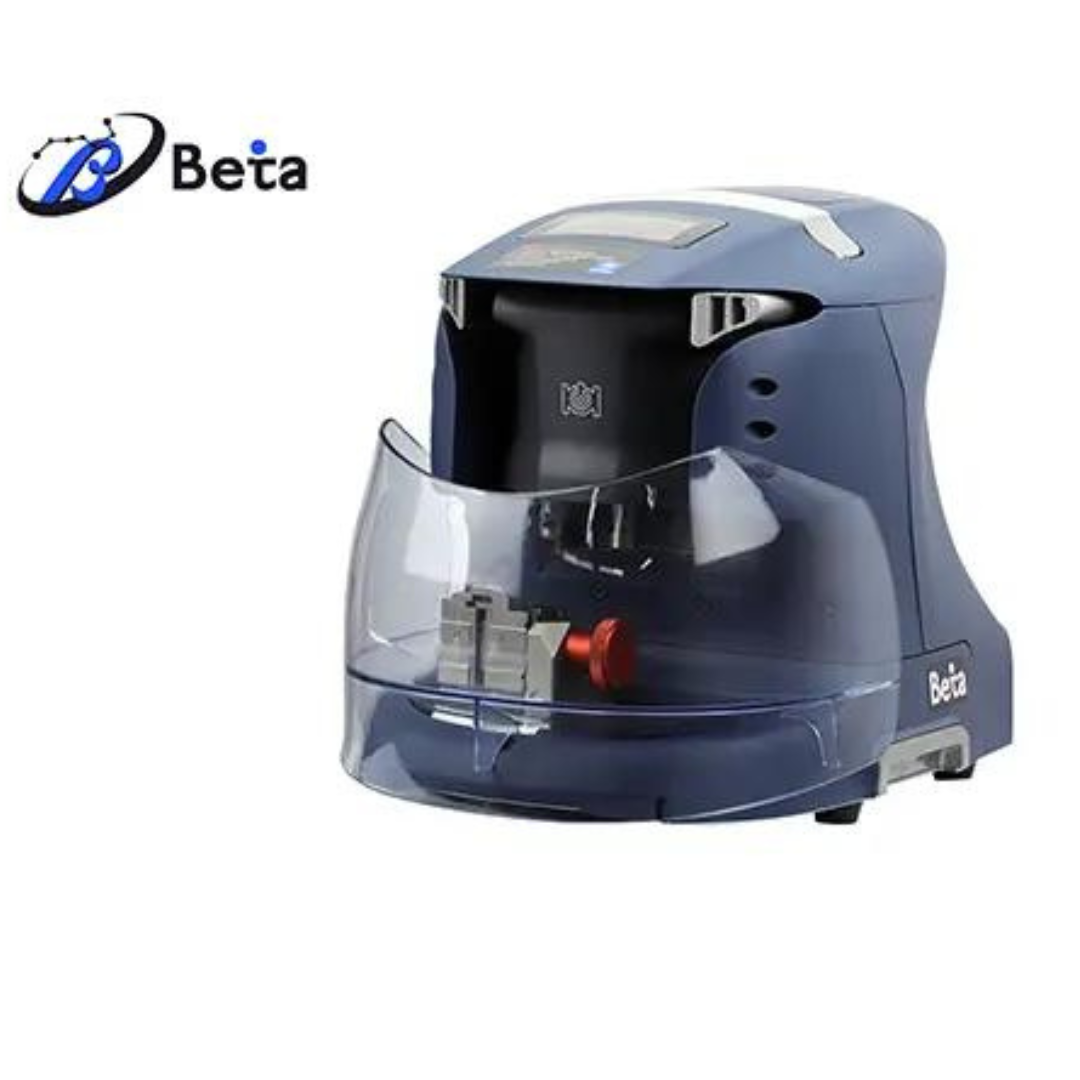

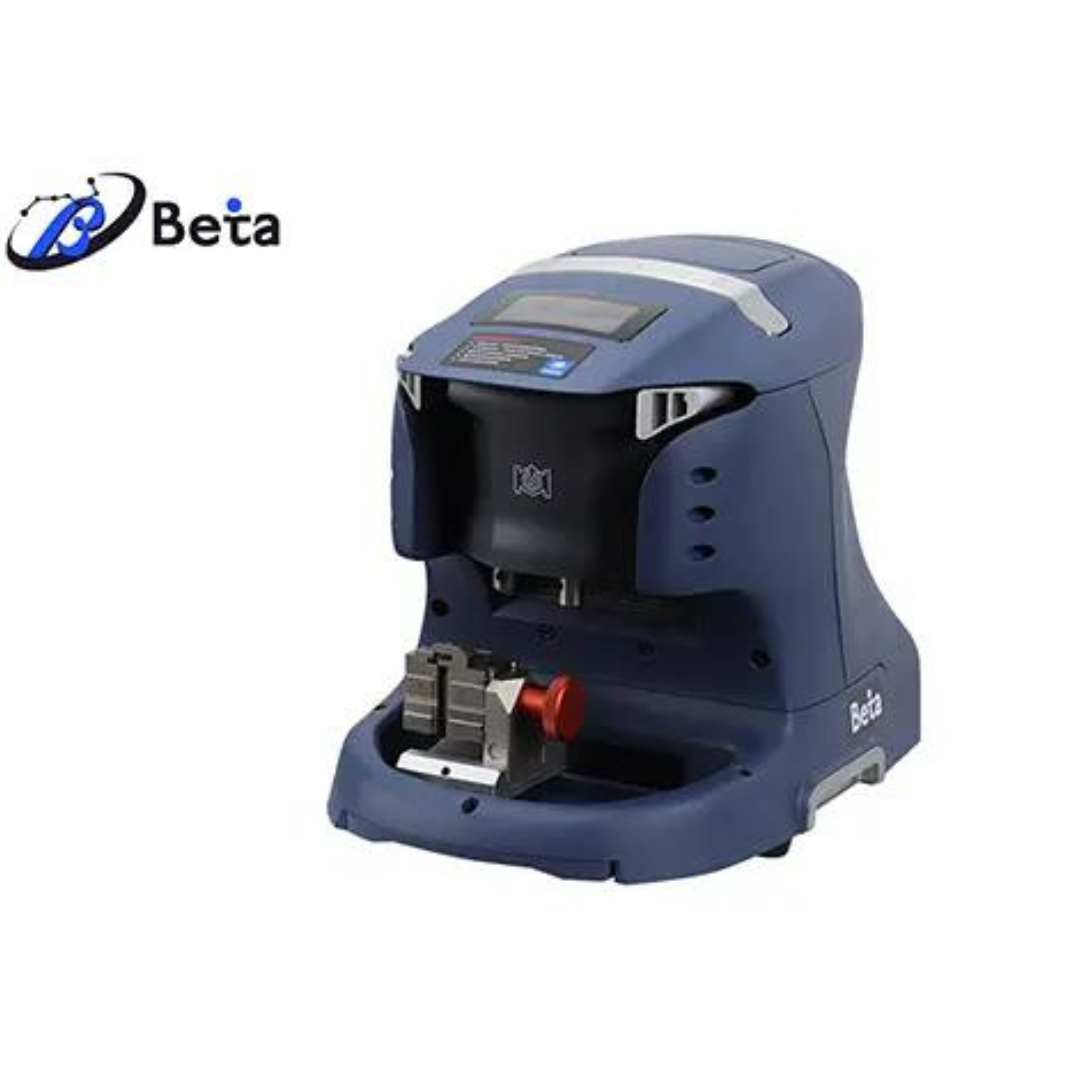

Beta Automatic Key Cutting Machine

A small display screen showing the machine working status

Working with APP(supporting Android and iOS）

Connecting APP with machine by Bluetooth

More stable and quicker upgrade

Technical Parameter



Feature of Beta key cutting machine

A. 14kg can be carried by one hand, lighter and easier to move

Pressed handle hidden in machine, more beautiful and more portable

B. LED under spindle moves with the working area, more flexible and humanization

Equipped with both decoder and cutter

Quick and easy duplication is available

C. Optional 12V car cigarette power cord connects machine with vehicle cigar jack for mobile locksmith, more portable

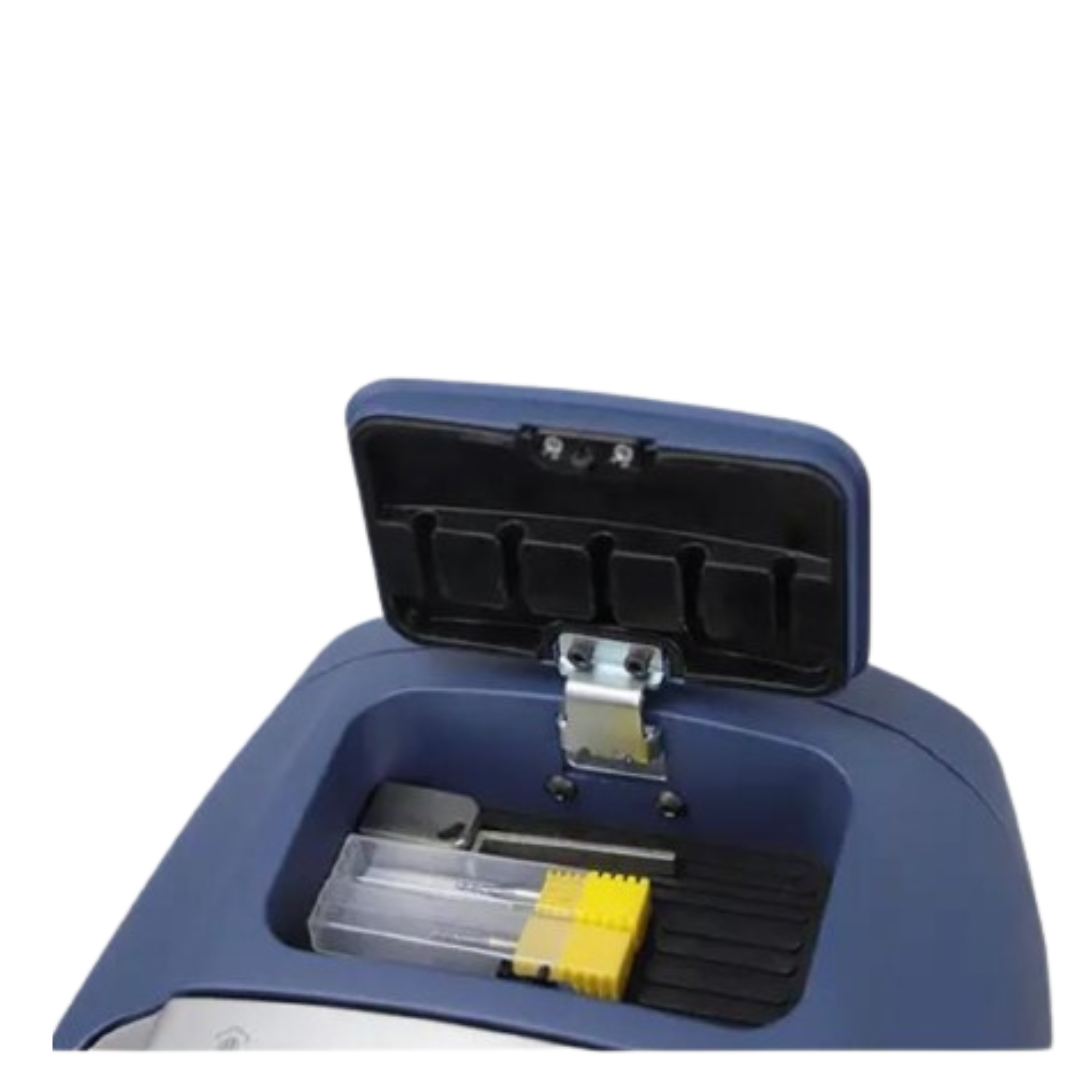

D. Equipped with tool box to place decoders, cutters, calibration blocks and key blanks etc.

E. High power brushless DC motor controls the cutter directly, bringing higher output torque, more powerful cutting, less noise and longer lifetime

Software of Beta key cutting machine

1. Support to cut various keys, including:

Automobile keys, Motorcycle keys, Chinese car keys, Residential keys, Dimple keys, Tubular keys etc.

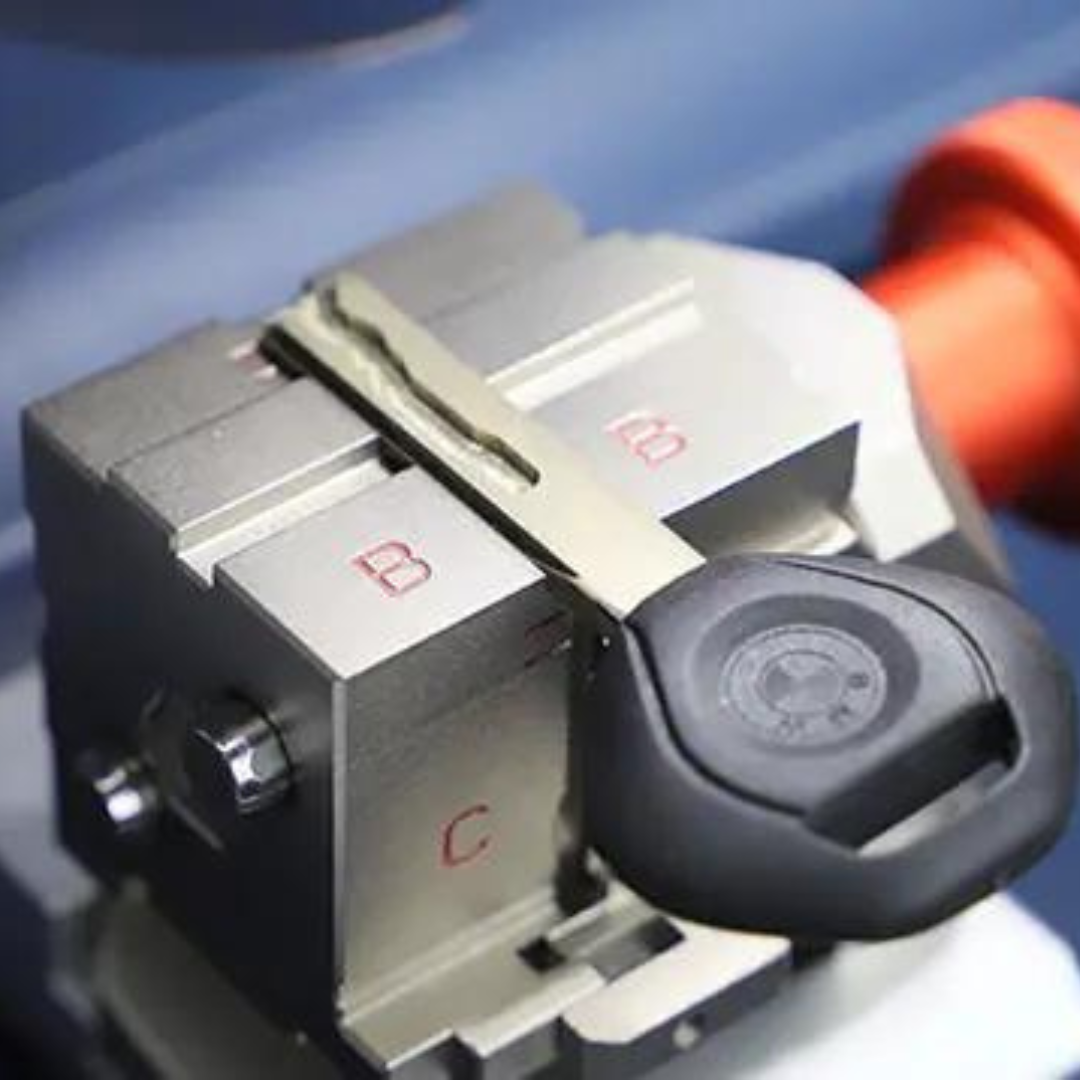

2. S1 jaw(4-way jaw) cuts standard & laser car keys and dimple keys (optional dimple decoder and cutter).

AB side for laser keys, B side for dimple keys (Mul-T-Lock keys, optional dimple decoder and cutter)

CD side for standard keys

A part of car key brand list of KUKAI Beta key cutting machine

3. Key code search supported

Can directly input the key code to find biting number for cutting in the machine

4. Key photographing supported

Assisting reading key bitting number by camera

5. Key progression supported

It works know the “unknown bitting number” by the big base in Beta, so it’s very help when you want to make key without knowing complete bitting numbers, especially when all keys lost, it will help you to work efficiently

6.Support to duplicate keys without key data in database

Including: single standard, double standard, single external groove, double external groove, internal groove, tubular keys, double-track internal groove and triple-track internal groove etc.

7. Support to cut a new key when lost the original keys

8. Support to custom keys by yourself

Including: single standard, double standard, single external groove, double external groove, internal groove, dimple keys and tubular keys etc.

9. Support to save the needed key data in favorite list
There is no store limitation for favorite list, you can save the poplar key data or import customer information based on your needed, in this way, you can create your personal management system of data and customer.

10. Support to cut new Honda keys

If you already purchase S2 jaw, we will suggest to cut it by S2 jaw, there will be only 1 step and it will be more convenient & accurate

If you don’t have S2 jaw, you can cut on S1 jaw as well, there will be 2 steps, but you don’t need to purchase another jaw for cutting this keys.

11.  Equipped with both decoder and cutter

No calibration needed after changing cutters.

Standard package

1 x S1 jaw——Fixing standard keys,laser keys and dimple keys,Mul-T-Lock keys (dimple cutter and decoder is optional)

1 x 1.5mm Cutter——Cutting standard keys and some laser keys（HU162T,HU198T etc.）

1 x 2.0mm Cutter——Cutting most laser keys

2 x 45° Decoder——Key decoding tool

1 x Calibration Block——Calibrating jaw

1 x Stopper——Guiding key reference position

2 x M3 Screw——Fixing keys on side C/D of S1 jaw

2 x M5 *10 Sharp Screw——Fixing key jaws on machine

2 x M5 Screw——Fixing cutter and decoder

1 x 1.5mm L-wrench——Tightening M3 bolt

1 x 2.5mm T-wrench——Tightening M5 bolt

1 x 12V Adaptor with Power Cord——Power supply input 100~240V 50/60 Hz 2A;output 24V 5A

1 x USB Cable for Upgrade——machine upgrade

1 x Brush

1 x Shield



KUKAI key cutting machine accessories

KUKAI SEC-E9 vs Alpha Pro vs Beta key cutting machine



Other jaws for Beta key cutting machine

Two types car key jaws——S4 FO21 tibbe key jaw & S6 SX9 key jaw

1. S4 jaw FO21 Tibbe jaw（optional jaw）—Support to cut Ford 6cuts & jaguar 8cuts tibbe keys;

2. S6 SX9 jaw（optional jaw）–Support to cut SX9 citron keys

Three types house key jaws ——S2 single sided key jaw & S3 tubular key jaw & S7 new tubular key jaw

1. S2 jaw single standard jaw（optional jaw）—Support to cut double sided keys and Single sided keys; Such as Schlage/Kwikset/Abus single standard key/LF24…etc.

Special car keys, Such as New Honda Smart key and Mazda MAZ24 keys (2014-2019)

2. S3 jaw tubular jaw（optional jaw）—Support to cut tubular keys,including:Beaver,Chicago,Sentry,R.O.C. etc. ;

3. S7 new tubular SAG jaw（optional jaw, should take a SAG key cutter）–Support to cut new tubular SAG key

4. S9 Abus & SX9 Key Jaw（optional jaw）— Abus Plus, SX9 Citroen keys

5. S10 Magnum key jaw（optional jaw）—Yale, Magnum angle dimple keys





KUKAI key cutting machine key jaws

KUKAI SEC-E9 vs Alpha vs Beta key cutting machine

How to download and use APP of Beta key cutting machine

Comparison sheet for KUKAI Alpha Pro & Beta & SEC-E9 key cutting machine



KUKAI Beta update information(2023.3.31)

Database version: 16.49

Newly added key data includes:

1. Improving Mazda vehicle list
Add Mazda 2 2014~ into vehicle list
Add Mazda 3 2021~ into vehicle list
Add Mazda 6 2016~ into vehicle list
Add Mazda Atenza 2016~ into vehicle list
Add Mazda Axela 2017~ into vehicle list
Add Mazda CX-3 2020~ into vehicle list
Add Mazda CX-30 2021~ into vehicle list
Add Mazda CX-5 2020~ into vehicle list
Add Mazda CX-9 2020~ into vehicle list
Add Mazda Demio 2014~ into vehicle list
Add Mazda Miata 2016~ into vehicle list
Add Mazda MX30 2021~ into vehicle list
Add Mazda MX5 2016~ into vehicle list
2.Improving Isuzu vehicle list
Add Isuzu D-Max 2019~ into vehicle list
Add Isuzu MU-X 2020~ into vehicle list
Add Isuzu Sumo 2016~ into vehicle list
3.Improving Dodge vehicle list
Add Dodge Challenger 2014-2018 into vehicle list
Add Dodge Charger 2011-2018 into vehicle list
Add Dodge Durango 2014-2015 into vehicle list
Add Dodge Ram Pickup 2015~ into vehicle list
Add Dodge Viper 2012-2017 into vehicle list
4.Improving Chrysler vehicle list
Add Chrysler 300 2018~ into vehicle list
Add Chrysler 300C 2018~ into vehicle list
Add Chrysler Pacifica 2016~ into vehicle list
5. Improving Cadillac vehicle list
Add Cadillac ATS 2015~2019 into vehicle list
Add Cadillac XT4 2018-2020 into vehicle list
Add Cadillac XT5 2016-2020 into vehicle list
Add Cadillac XT6 2019-2020 into vehicle list
6. Improving Fiat vehicle list
Add Fiat 500X 2014~ into vehicle list
Add Fiat Ducato 2010~ into vehicle list
Add Fiat Panda 2012~ into vehicle list
7. Improving Opel vehicle list
Add Opel Insignia 2017~ into vehicle list
Add Opel Meriva 2017~ into vehicle list
Add Opel Movano 2021~ into vehicle list
8.Add Kale/Viro/Iseo/Sargent into Standard list
9.Add 60613pcs Yale Code
10.Add 50pcs Weather Guard Code

Service:

1.Any inquiries will be replied within 24 hours;
2.Five-star after-sales and technical support;
3.Have CE certificate;
4.Lifelong free software upgrades, almost 2-4 times per year;
5.The machine warranty is 12 months from the purchased data from manufacturer.
