Launch Smartsafe X-431 ADAS PRO PLUS

X-431 ADAS PRO Plus is a professional high-precision ADAS calibration equipment that supports the calibration of various ADAS systems in vehicles and meets the daily calibration needs of auto repair shops and glass shops for Passenger car ADAS calibration. It enables you to effectively and accurately calibrate various types of camera and radar driving assistance systems.

Why Use ADAS Calibration Tools?

Repair or replace sensor control unit (replace ACC radar, front camera sensor). Sensor deflection angle is out of normal range (incorrect mounting position angle). Move the position of the sensor on the Car body (the sensor position changes). Repair or replace the parts that hold the front sensor (replace bumper, front windshield). Adjust the chassis.

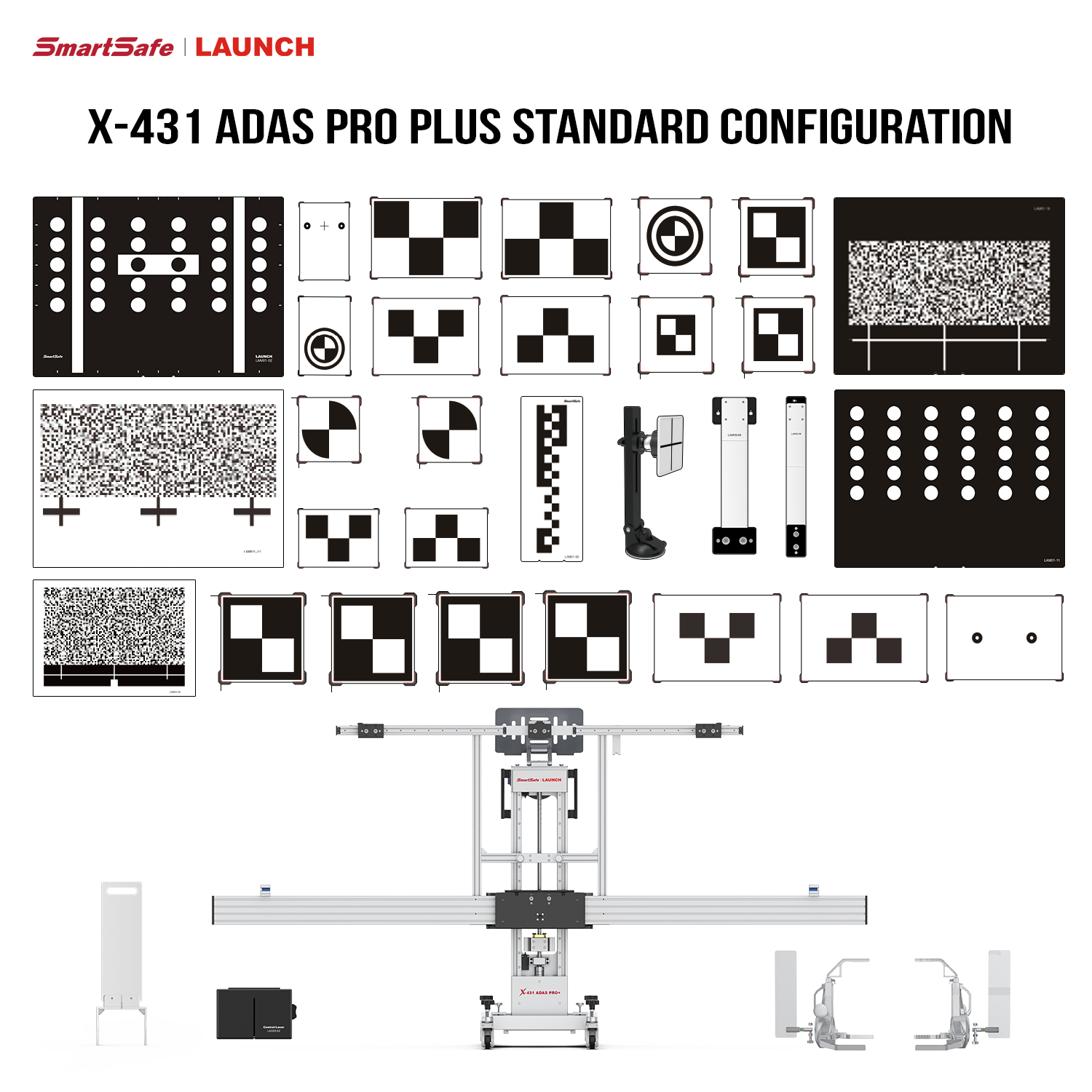

Standard Configuration

This package contains the Main Frame, LDW Target Supports Unit (includes VW LDW Target LAM01-02), LDW Target Kit, and accessories.

Features

Ultra high precision, fast positioning and simple operation
Support multi-directional fine-tuning (horizontal, front and back, left and right), without move mobile devices frequently , and can be aligned and parallel in one minute
Support electric and manual lifting, and the operation is fast and convenient
With a millimeter-level precision laser rangefinder, no tape measure is required to measure the distance
Newly upgraded aluminum alloy material, durable and stable

Vehicle Coverage

ASIAN: Kia, Hyundai, Toyota, Lexus, Honda, Acura, Nissan, Infiniti, Mitsubishi, Subaru, Suzuki, Daihatsu, Mazda, JAC, SGMW, Baic, BYD, Haval, Chery, Lynk&Co and more
EUROPEAN: Mercedes-Benz, BMW, Audi, Volkswagen, Land Rover, Jaguar, Volvo, Fiat, Opel, Seat, Skoda, Renault, Citroen, Smart, Mini, Peugeot, Porsche, Romeo and more
AMERICAN: GM ,Ford, Chrysler , Buick, Cadillac, Chevrolet, Dodge, Jeep, Lincoln, and more

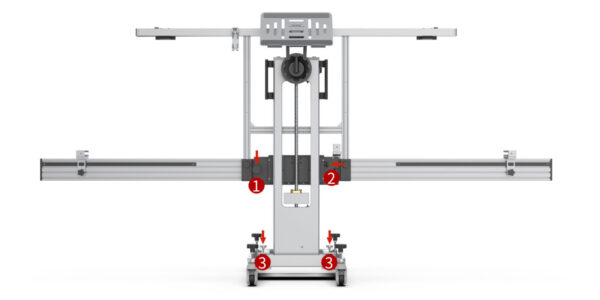

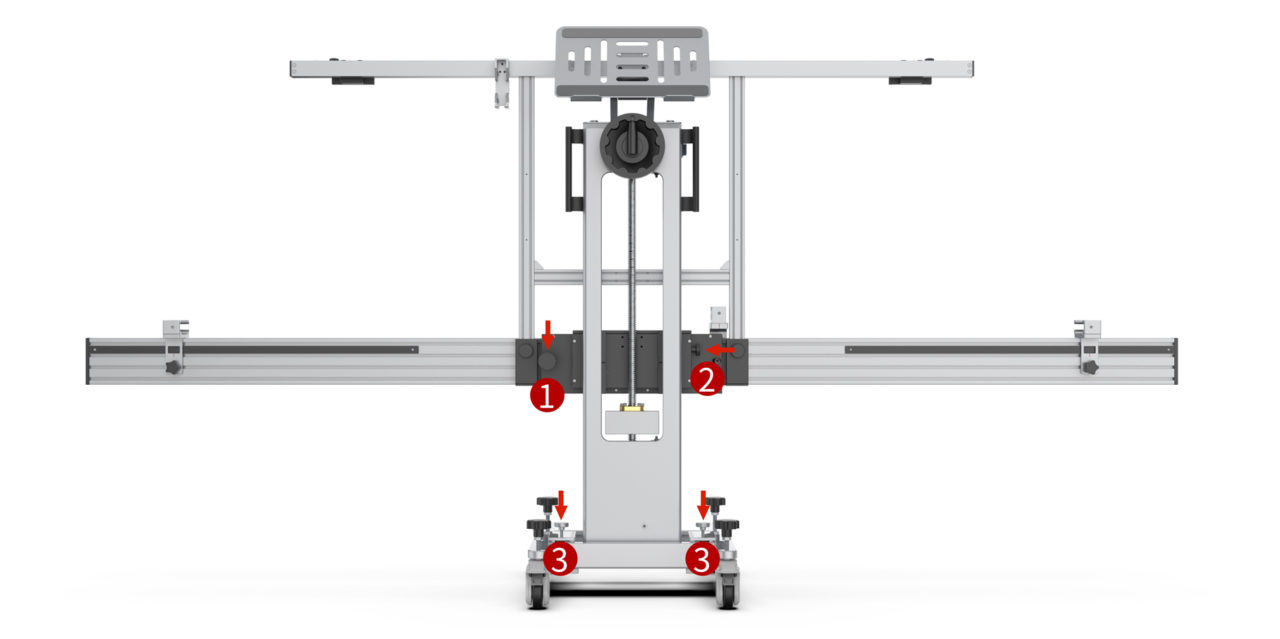

X-431 ADAS PRO PLUS mainly consists of main frame, wheel clamp, target holder, laser range finder, range indicator and calibration target. It supports multi-directional fine tuning, including level, front and rear, right and left.

X-431 ADAS PRO PLUS enables calibration of ADAS systems such as:

LDW: Land Departure Warning

ACC: Adaptive Cruise Control

AVM: Around View Monitor

BSD: Blind Spot Detection

NV: Night Vision

RCW: Rear Collison Warning

It is compatible with BSD, AVM and rear camera targets of X-431 ADAS PRO and X-431 ADAS Mobile.

How to Choose ADAS Calibration Targets

① Vehicle type: confirm your brand and model

② Calibration types and space required by the target

③ Target cost: some targets are expensive and need to be factored into your decision-making

④ Shop conditions: workstation size, workstation lighting, workstation floors

By considering these factors, you will be able to make more favorable choices about how to select your ADAS targets!
