Description
Autel MaxiSys MS908S3 is a full-function tool that provides repair information for diagnosing vehicles, identifying faults, and researching repairs. It features a powerful octa-core processor and 10.1-inch TFT-LCD capacitive touchscreen for swift diagnostics and optimum viewing. As an advanced diagnostics and information system, MaxiSys MS908S3 offers the best possible coverage of OE-level diagnostics to help you diagnose symptoms, codes, and other vehicle problems quickly and efficiently.

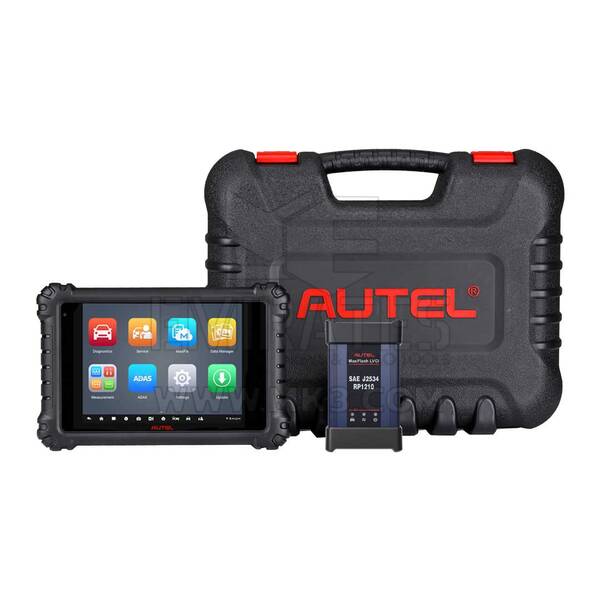

There are two main components to the MaxiSys system:

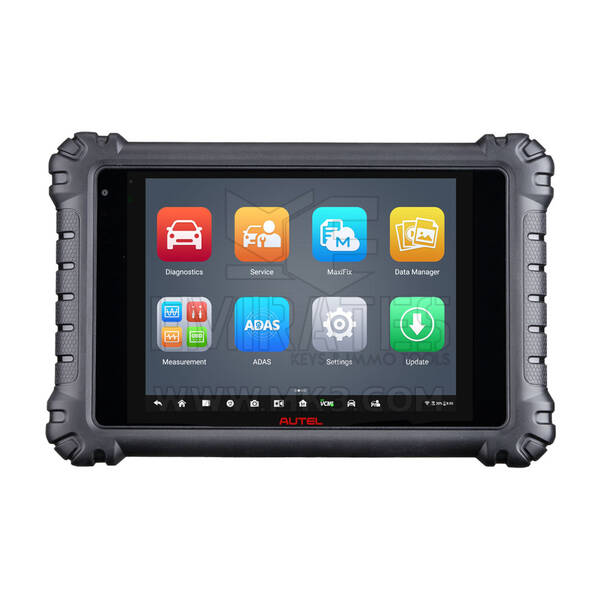

MaxiSys Tablet — the central processor and monitor for the system.
MaxiFlash LVCI — the vehicle communication interface.
This manual describes the construction and operation of these devices and how they work together to deliver diagnostics solutions.
Autel MS908S PRO III Specifications
| Item | Description |
| Operating System | Android 10 |
| Processor | Octa-core Processor |
| Memory | 4 GB RAM & 128 GB On-board Memory |
| Display | 10.1-inch LCD capacitive touchscreen with 1920 x 1200 resolution |
| Connectivity | Wi-Fi (802.11 a/b/g/n/ac)
BT 5.0 (BR/EDR + BLE) GPS USB 2.0 (Two USB Host Type A, one Mini USB) SD Card (Support up to 256 GB) |
| Camera (Rear) | 3 MP |
| Sensors | Gravity Accelerometer Ambient Light Sensor (ALS) |
| Audio Input / Output | Microphone Dual Speakers 3-band or 4-band 3.5 mm Headset Jack |
| Power and Battery | 11600 mAh 3.85 V Lithium-polymer Battery Charging via 12 V DC Power Supply |
| Input Voltage | 12 V/3 A Adapter |
| Operating Temp. | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temp. | -10 °C to 60 °C (14 °F to 140 °F) |
| Dimensions
(L x W x H) |
311.1 mm (12.25”) x 216.0 mm (8.50”) x 39.9 mm (1.57”) |
