Description

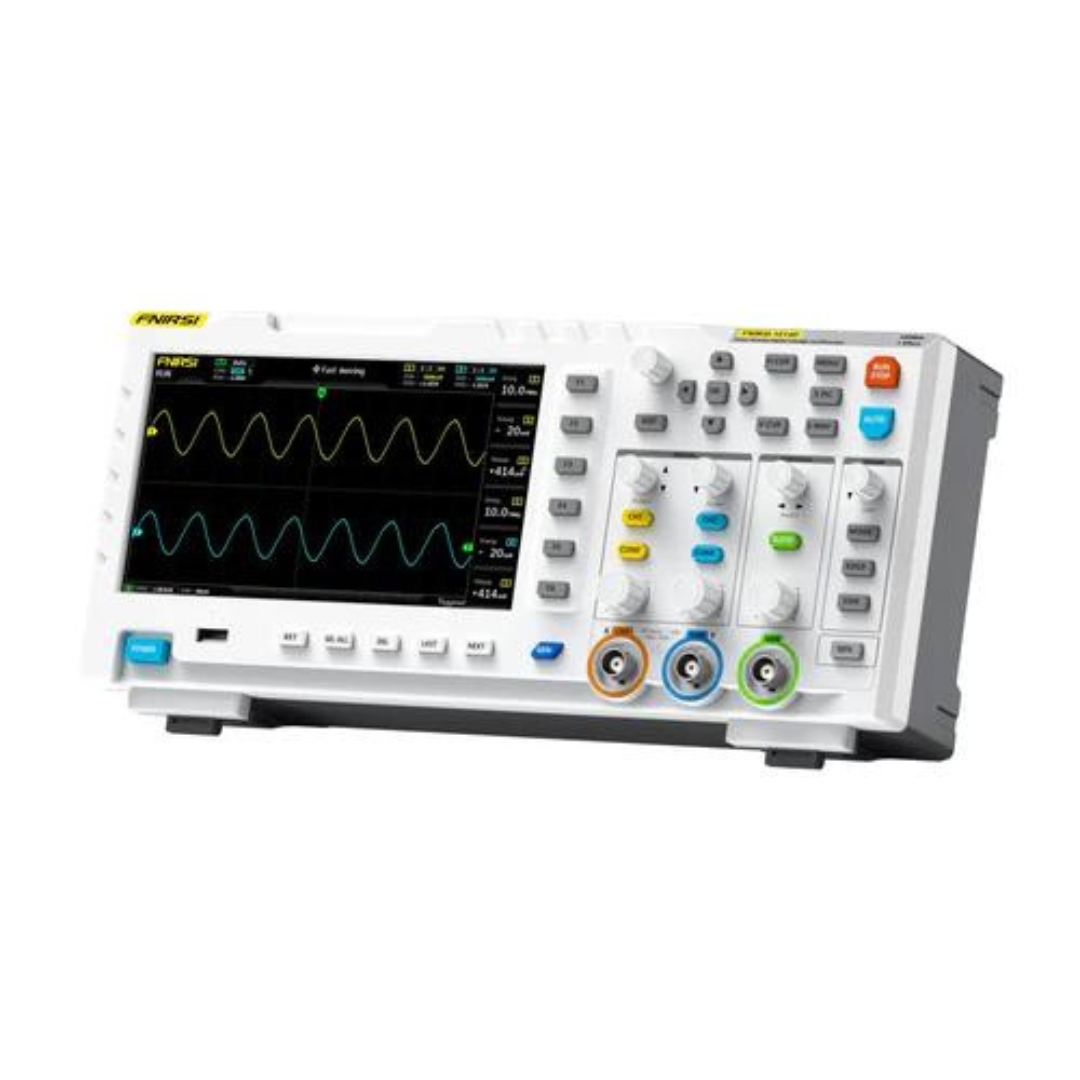

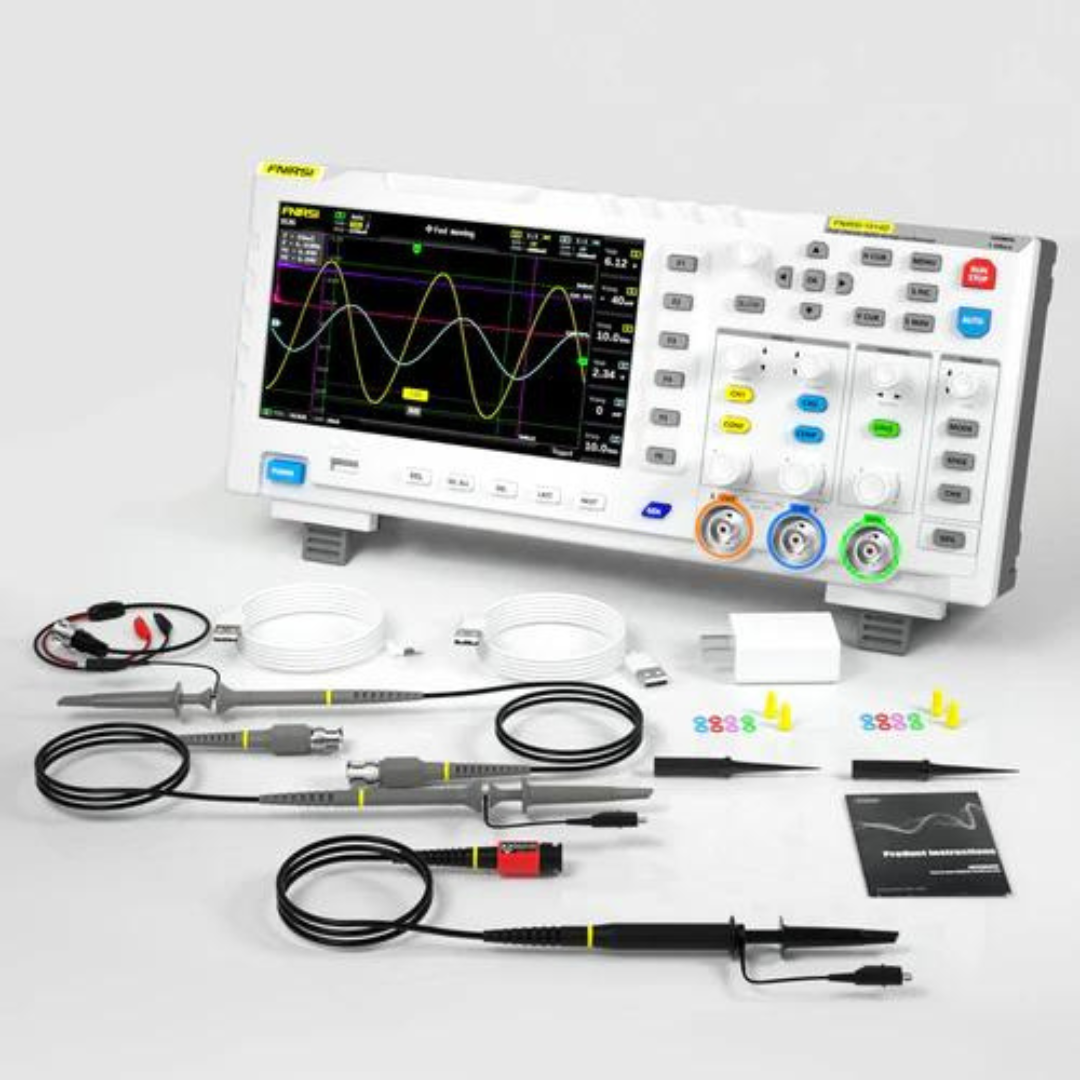

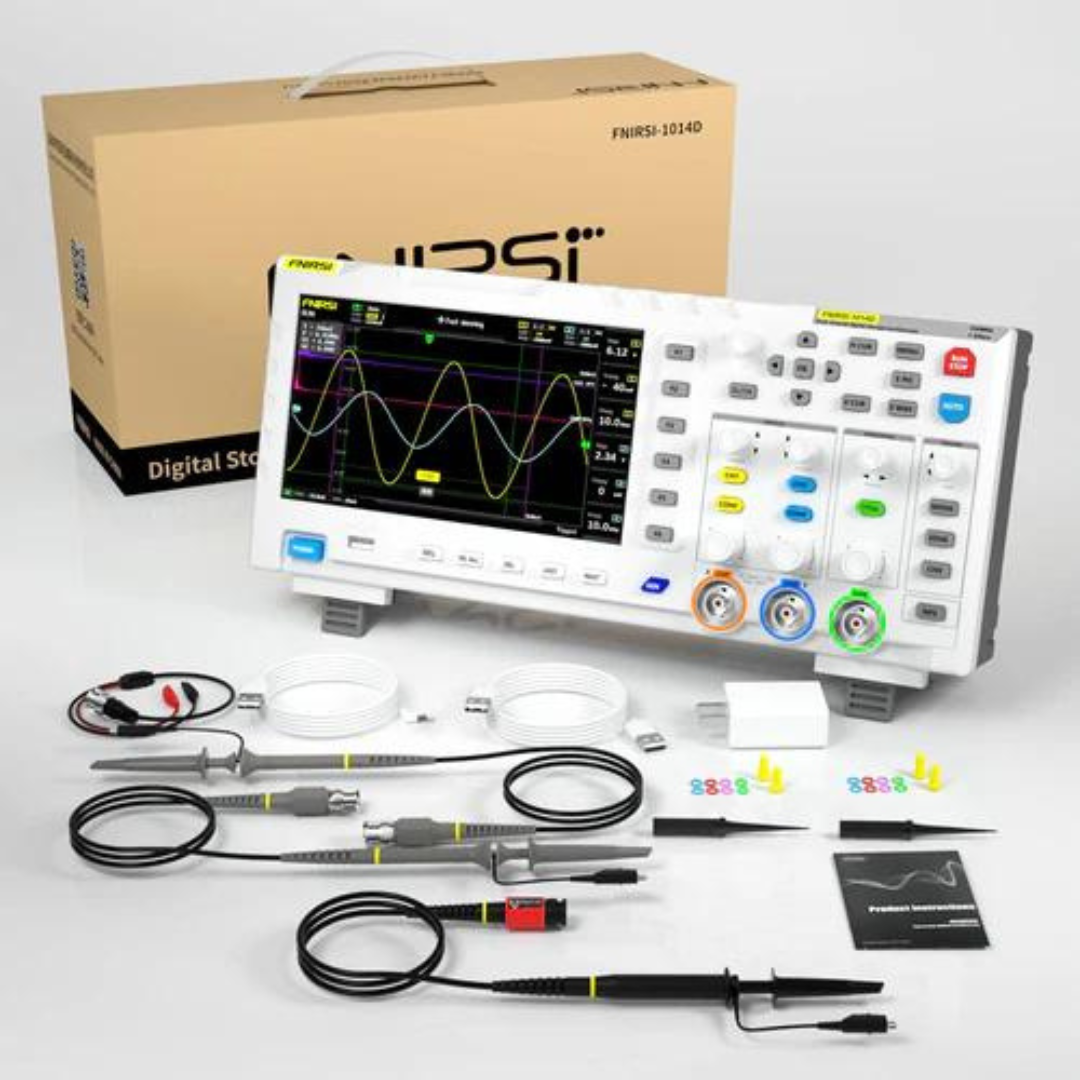

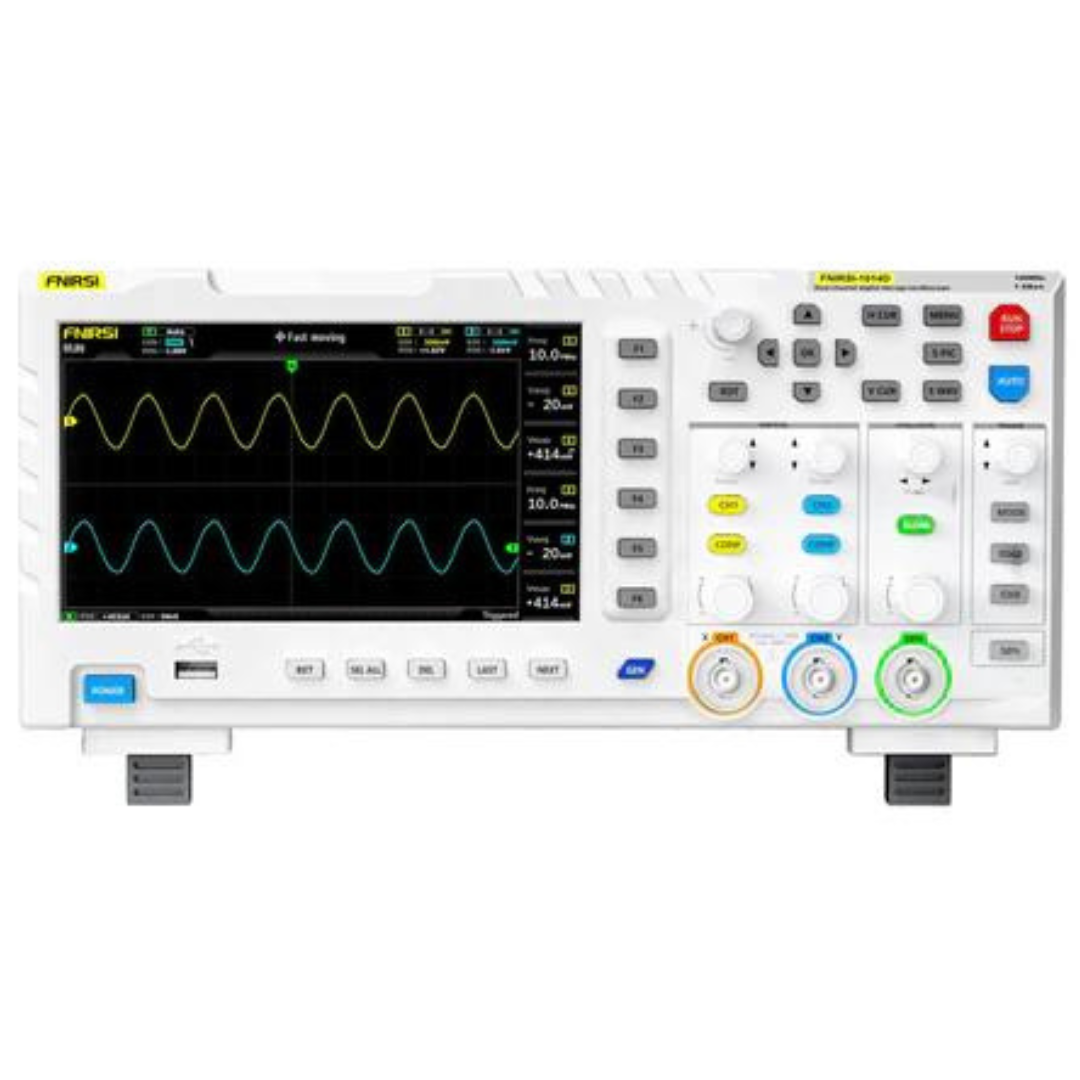

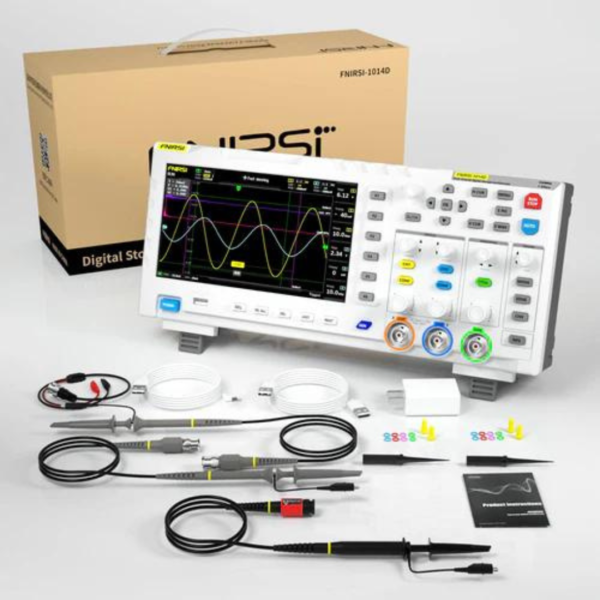

FNIRSI-1014D is a two-in-one oscilloscope and signal generator launched by our company. It has comprehensive functions and high practicability. It is a cost-effective dual-channel desktop oscilloscope aimed at people in the maintenance industry and R&D industry. The oscilloscope has high sampling rate, high bandwidth, high withstand voltage, and high storage space, supports up to 1000 waveform storage, and supports functions such as zooming in, zooming out, and moving. Also with USB function, it can support firmware upgrade and can be interconnected and shared with the computer, which is convenient for secondary analysis; built-in DDS function signal generator and the industry’s original chopping wave output device (@2.5VPP), supports 14 kinds of standard function signals and a freely customized chopping signal.
- Dual Channel
- 2 in 1: Digital Oscilloscope + DDS Function Signal Generator

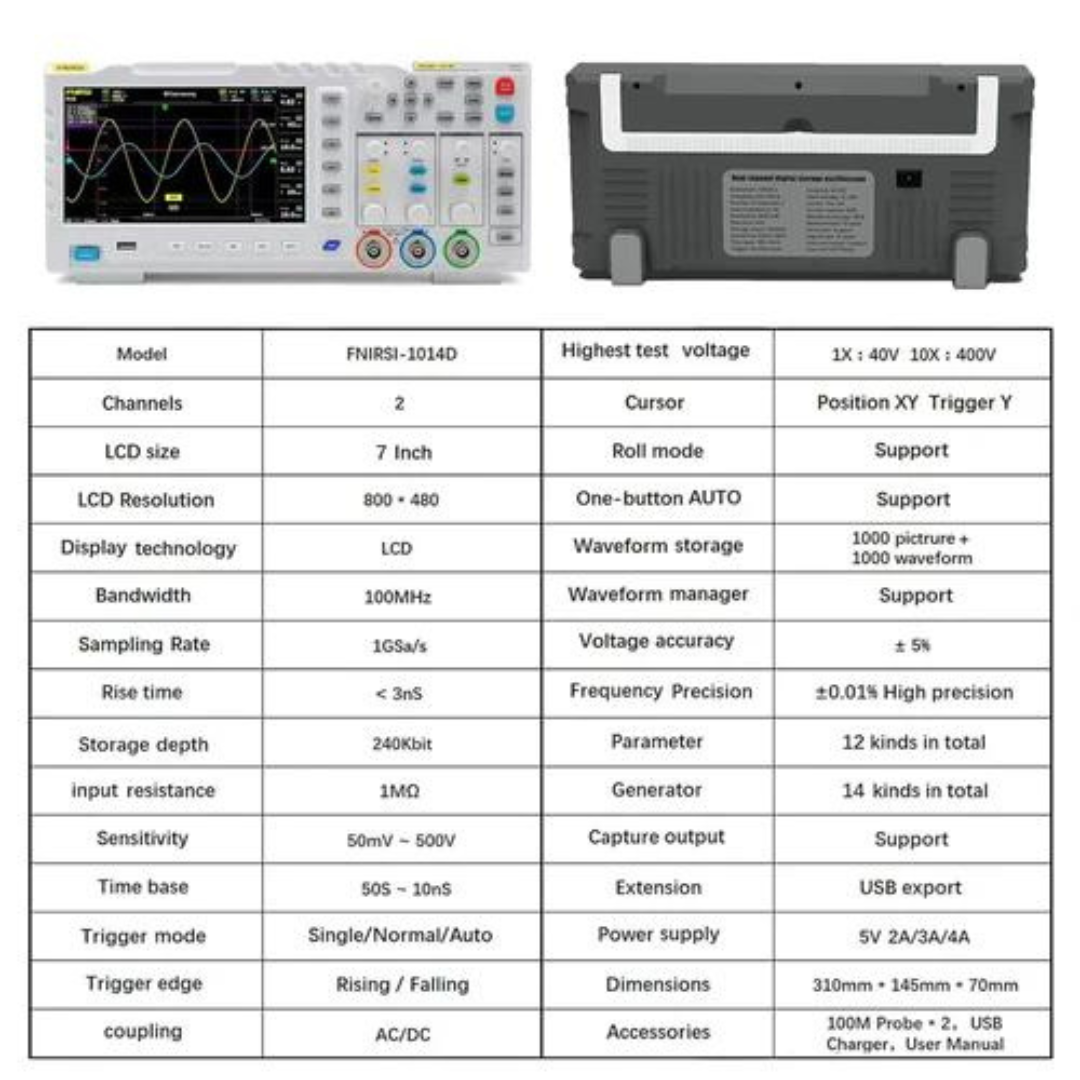

- 1GSA/S sampling rate, 100MHz * 2 analog bandwidth.
- Complete trigger function (single/normal/automatic).
- Capable of storing up to 1000 customized chopping signals.
- high-voltage protection module.
- One-button AUTO and adaptive trigger (25%, 50%, 75%).
- 7-inch 800*480 resolution high-definition LCD screen.
- Powerful Waveform Picture Manager.
- One-key Screenshot and Saving.
- Cursor measurement function.

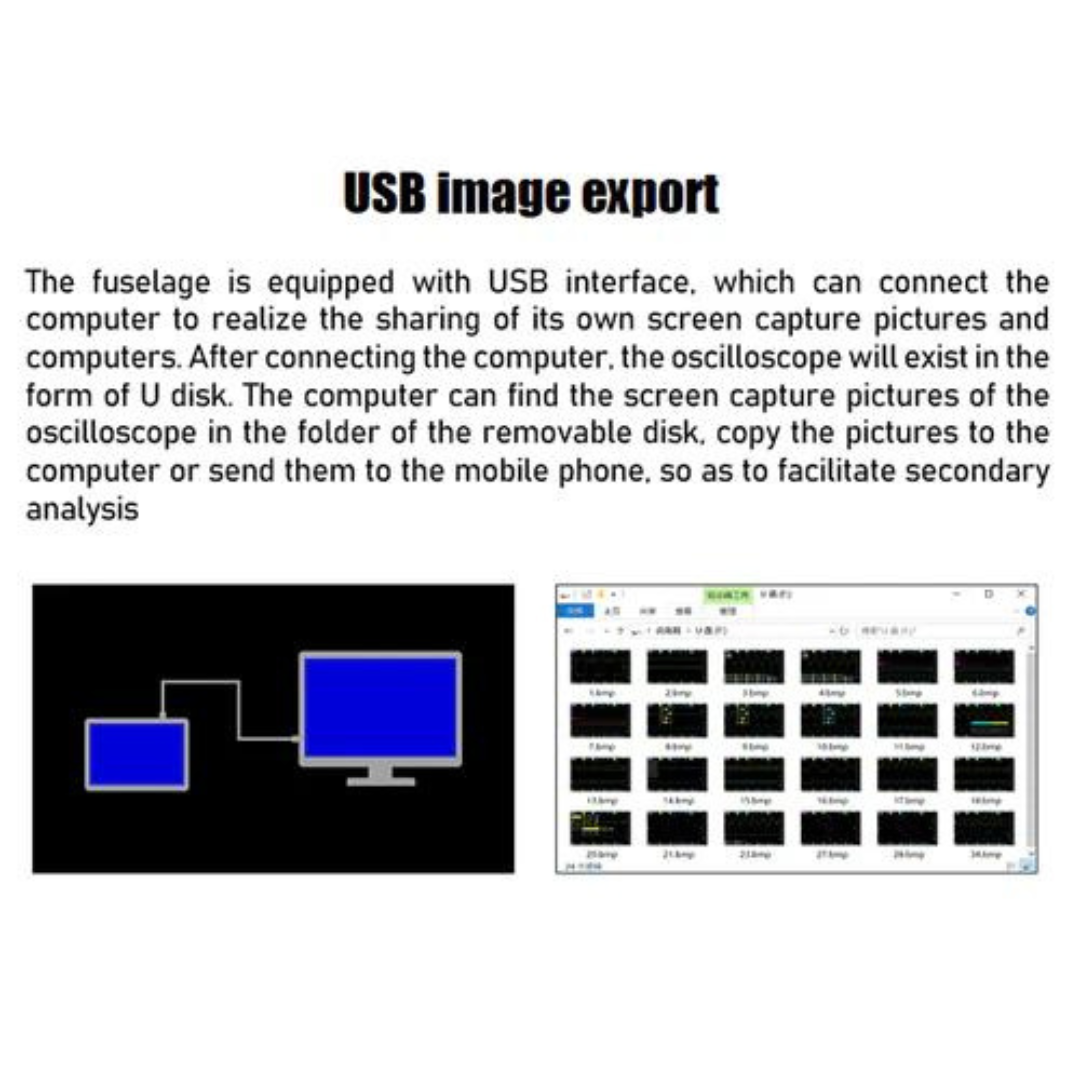

- USB Picture Export
- Lissajous Graphic Display & FFT Viewing.
- Ideal for both periodic analog and aperiodic digital signals.
Main Functions:
– Complete trigger function (single/normal/automatic)
– Built-in DDS function signal generator
– Lissajous graphic display for comparing signals
– FFT viewing for harmonic content estimation
– Cursor measurement function for easy amplitude-frequency parameters reading
– One-button AUTO trigger for easy waveform display
– Waveform manager for waveform and screenshot management
