Description
Faster, Smarter, Stronger, More Accurate
The latest tablet scanner i70Pro delivers faster and smarter diagnosis for workshops and technicians. With IP67 rated waterproof, dustproof and shockproof design, i70Pro can resist the impact and the damage of even the toughest workshop environment and road tests. Through hardware and software upgrades, technical staff can now approach problems with greater speed and accuracy, and produce comprehensive, professional reports.
What i70pro Can Do?
- IP67 rating allowing i70Por against dust, water and absorb shocks and bumps
- Compatible with the latest 2017/2018 models, including cars, SUVs, minivans, light-duty trucks sold worldwide
- Get access to powertrain, chassis and body systems
- Quick Test function to test most vehicle systems
- Read and clear diagnostic trouble codes and resets MIL
- View live vehicle sensors data in a text, graph and gauge format
- Merge interactive live sensor graphs for easy and intuitive diagnosis
- Live data self learning and alarm when live data over range
- Record and playback your data-logs for offline analysis
- Read and clear freeze frame data
- Run component/system bi-directional tests
- Support adaptations and control module coding
- Key coding for several vehicles
- Support the most commonly required service features like brake deactivation, service resets, and transmission adaptations
- Multi-language menus and code definitions for an international marketplace
- One click update via WIFI makes machine keep the latest system status at all times
- Wireless printing function allow you print diagnosis results and get instant feedback

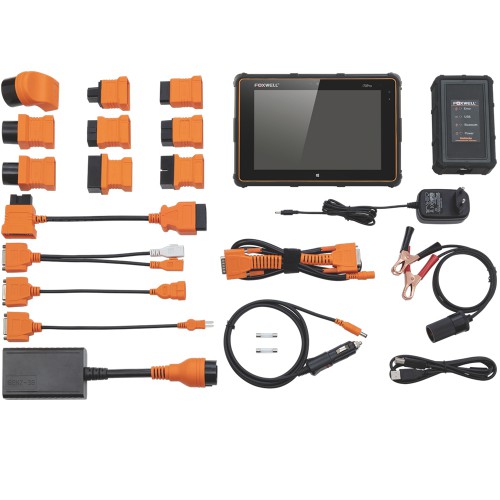

Kit includes
- i70Pro Main Unit
- Vehicle communicate Interface
- User’s Guide
- Diagnostic Cable
- OBDI/OBDII Connectors
- Clipper Cable
- Blow molding case
- AC/DC external power adapter
- 4-channel Oscilloscope (Optional)
- Videoscope (Optional)
Specifications
Screen: 8″ diagonal, daylight readable color LCD screen; 1280*800 pixel
Dust-proof and Waterproof Level: IP67
Touch with Gloves: Supported
Operating System: Android system
Processor: MT 8163 (ARM Cortex, A53 x 4, 1. 3GH z)
Memory: 2GB DDR3L
Hard drive: 32GB
Communication Interface: Built-in WIFI 802.11 b/g Wireless LAN
                        micro USB 2.0 OTG, USB 2.0 HOST standard
                        Bluetooth 4.0 (10-20 m)
HDMI: Yes
Camera: 5 megapixels rear-facing
Battery: 8000mAh, lithium-polymer battery. Chargeable via 5V AC/DC power supply
Protocols: ISO9141-2, ISO14230-2, ISO15765-4, K/L lines,Double K lines, Double K Line, SAE-J1850 VPW, SAE-J1850PWM, CAN ISO 11898, High-speed, Middle-speed, Low-speed and Single-wire CAN, KW81, KW82, GM UART, UART Echo Byte Protocol, TP2.0, TP16, SAE J1939, SAE J1708, Fault-Tolerant CAN.
Dimensions: 230*155*21mm
