Description

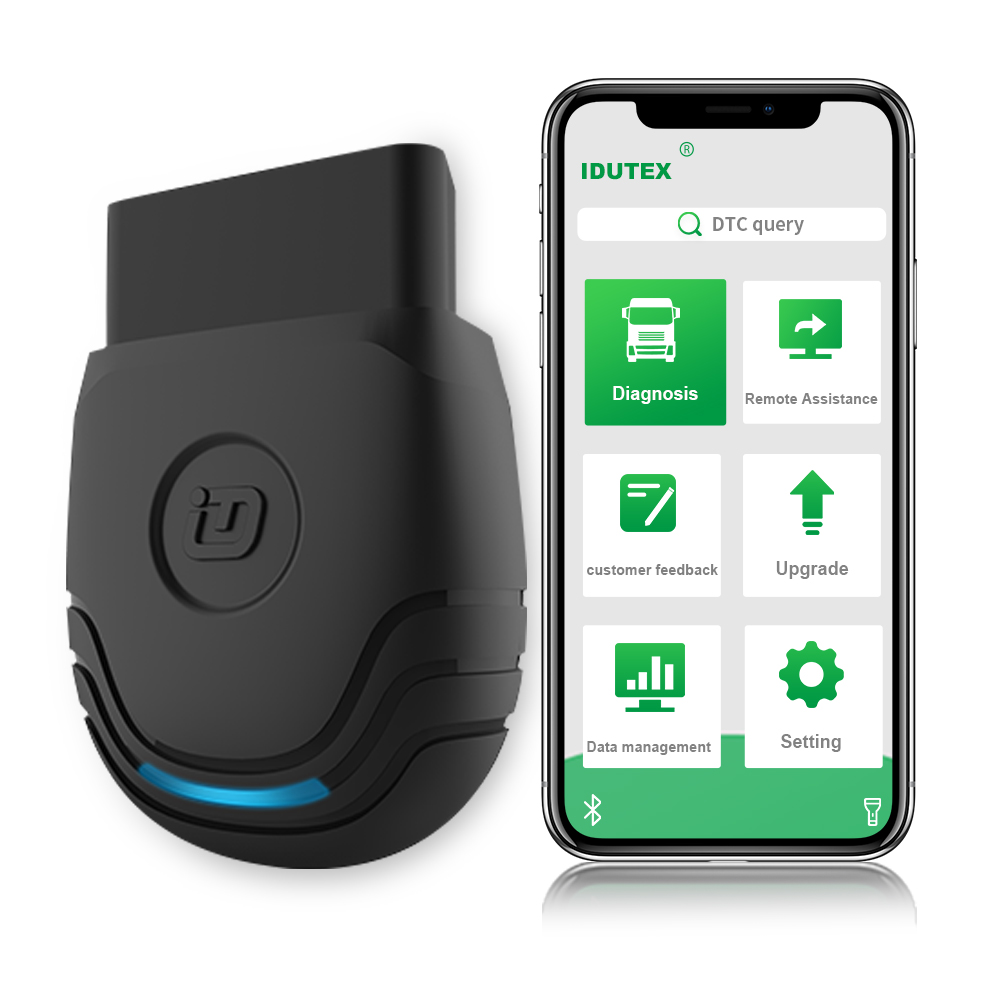

IDUTEX TPU300 is a OBDII scan tool based on android system works on commercial vehicles and cars, by connecting to your phone, any users can use the small VCI to easily read & erase trouble codes, check data list, system and vehicle info…etc. It includes 9/6/16 pin adapters for better communication with any kind of vehicle.
Features
1 Auto detected by automatic VIN.
2 Read ECU Information, Data Stream.
3 Read and erase generic codes (P0, P2, P3 and U0).
4 Read freeze frame data, monitor and I/M readiness status.
5 Read vehicle information (VIN, CIN and CVN).
6 Read, store and playback live O2 sensor test data.
7 Read PCM live data stream, with professional graphic data Display, includes waveform and
instrument mode.
Specification
Product name               IDUTEX PTU300
Product Form               Smart VCI + Android mobile APP
Processor               ARM 32 – bit Cortex processor
Input voltage              VCI 8-28V
Communication method           Bluetooth
Operating temperature         – 10 to 70 ℃ （14 – 158° F), Relative Humidity: <90%
Storage temperature          – 30 to 120℃ (-22 to 248° F), Relative Humidity: <90%
Supporting Protocol          ISO 9142-2,ISO 14230-2,ISO15765-4,ISO14229,K/L line,SAE-J1850 VPW,
SAE-J1850 PWM,CAN ISO 11898,Highspeed,Middlespeed,Lowspeed and
Single wire CAN,SAE-J1939,SAE-J1708,SAE-J1587,RS232
