Description

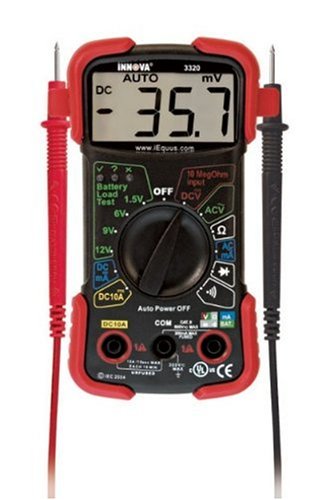

INNOVA 3320 Multimeter
The INNOVA 3320 Multimeter is a Auto-Ranging Multimeter designed to safely and accurately troubleshoot a variety of automotive and household electrical problems. It’s auto-ranging scales eliminate the need to dial in the correct range when making electronic measurements. The 10 MegOhm input is safe for automotive and household uses (i.e., household outlets, fuses, wiring, general-purpose batteries, vehicle battery and charging system, automotive circuits and more). The color-coded LEDs allow you to quickly check household batteries (green = good, yellow = weak and red = replace). Includes attachable test leads, holders and stand for hands free use and features protective rubber corner guards for drop protection. The INNOVA 3320 has a single setting resistance function for AC and DC voltage.
Features
- UL certified product designed to safely and accurately troubleshoot a variety of automotive and household electrical problems
- Auto-ranging scales eliminate the need to dial in the correct range when making electronic measurements
- Features large digital display and color coded LED’s for battery quick check
- Single-setting resistance function for AC and DC voltage
- Protective rubber corner guards for drop protection
General specifications
- 3 ½ digit large LCD display
- 3 LEDs: green, yellow and red
- Auto Range for ACV, DCV, Ohms, AC mA and DC mA
- Pollution Degree: 2
- Measuring circuit category: II
- Automatic negative (-) polarity indication
- Automatic zero adjustment
- Low battery indicator – displays battery symbol on LCD
- Over-range indicator (except on the 10A range) – displays “OL” on LCD
- Automatic power off after 15 idle minutes
- Operating environment
– Temperature: 32°-104°F (0°C to 40°C)
– Humidity: less than 80% relative humidity (non-condensing)
– Altitude: up to 6562 ft (2000 meters) - Storage environment
– Temperature: 4° to 140°F (-20° to 60°C)
– Humidity: less than 90% relative humidity (non-condensing) - Power Supply: Two 1.5V AA batteries
- Fuse: 315mA/250V 5X20 mm fuse
- Dimensions: Height: 139x89x32mm
- Weight (including batteries): approximately 180g
