Konnwei KW808

Description

Specifications:

1  Operating temperature: 0 – 60 Deg.C.

2  External power: 8 – 18V power provided via vehicle battery.

3  Display: Backlit, 128 x 64 pixel display with contrast adjustment.

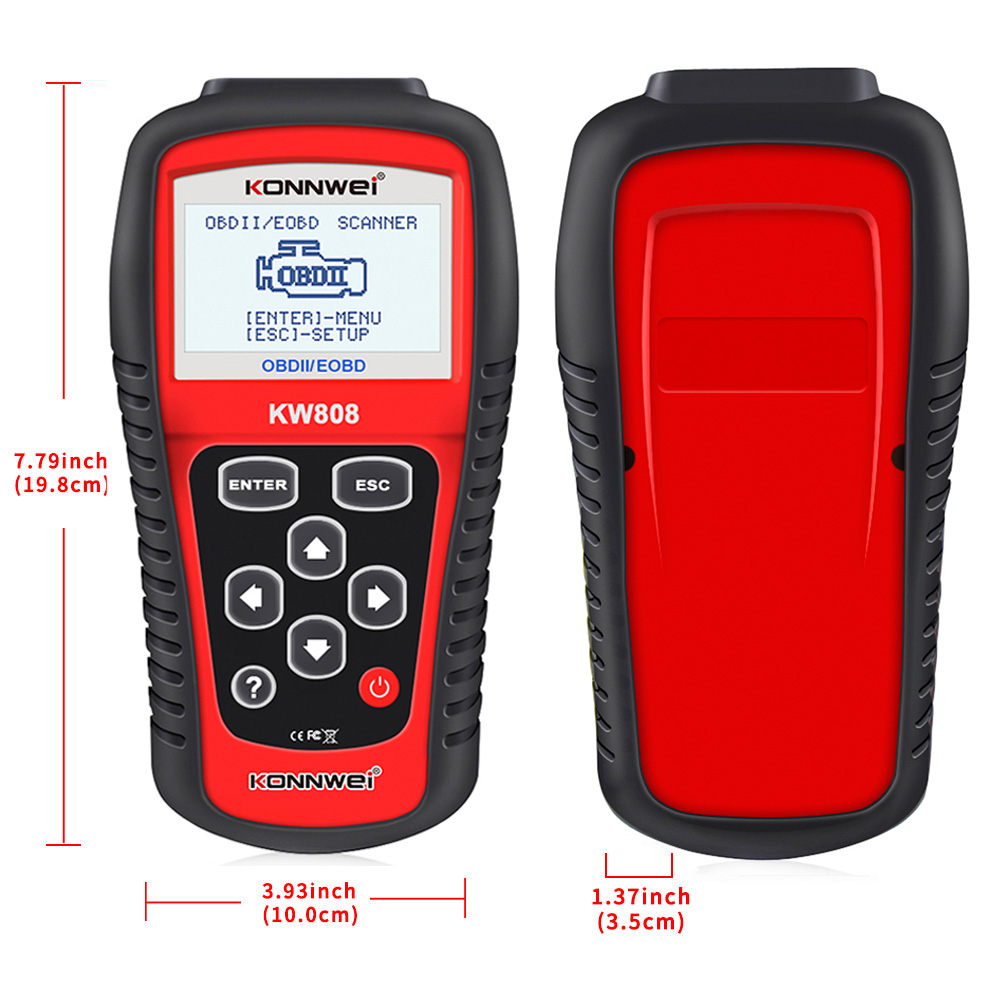

4  Dimensions: 7 x 3.7 x 1.4 inch.

5 Cable length: About 56 inches.

6 Material Type: Rubber Plastic

7 Package weight: 0.795 kg

8 Package Size(L x W x H): 25.00 x 18.50 x 7.00 cm / 9.84 x 7.28 x 2.76 inches

Functions :

1  Work on all 1996 and later OBDII compliant US, European and Asian vehicles.

2   Retrieves generic ( P0, P2, P3, and U0 ) and manufacturer specific ( P1, P3, and U1 ) codes.

3  Easily determines the cause of the Check Engine Light ( MIL ).

4  Display monitor and I / M readiness status ( emissions ).

5   Memory / battery backup for off-vehicle data review and analysis.

6   Supports CAN ( Controller Area Network ) and all other current.

7  Built-in OBD-II DTC lookup library.

8   Multilingual menu: 2 External power: 8 – 18V power provided via vehicle battery.

9   Displays DTC definitions on unit screen.

10  Displays live O2 sensor test data.

11   Large easy-to-read backlit LCD screen.

Car Diagnostic Scanner Languages & Support Protocol:

7 languages: English, French, German, Dutch and Spanish,Portuguese, Russian

Support Protocol: ISO 9141, KWP2000, SAE J1850, CAN,J1850 VPW,J1850 PWM

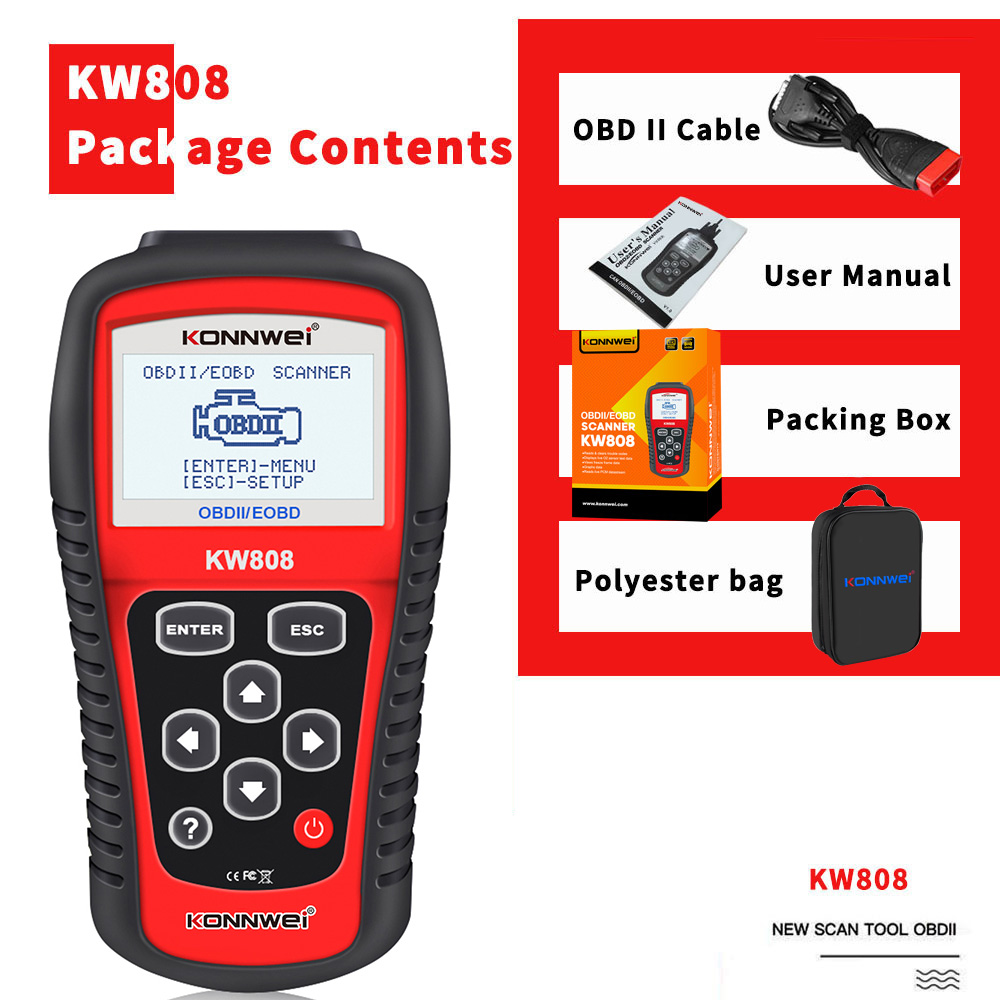

Package list:

1pc x KW808  OBDII/EOBDII Scanner

1pc x 1500mm length OBDII Connecting Cable

1pc x User Manual
