Description

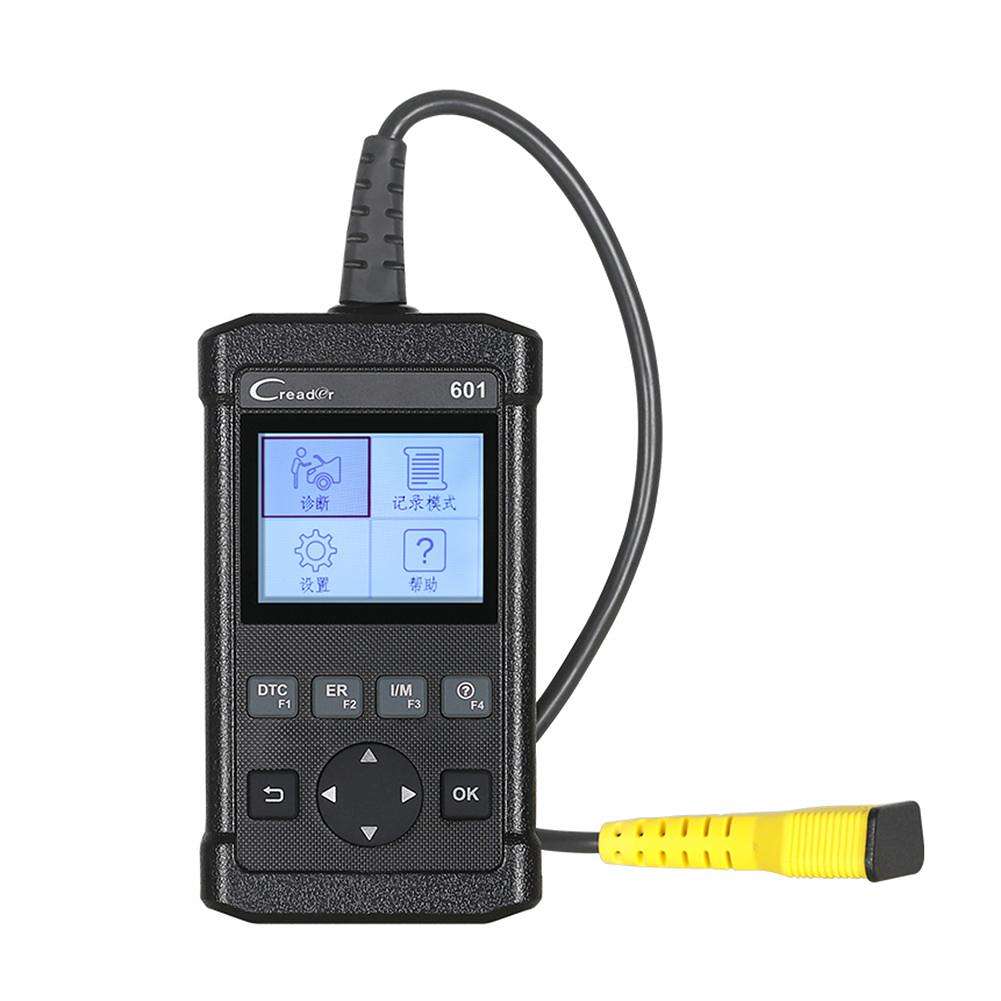

Launch Creader 601 is a handheld OBD diagnosis tool. It provides full OBDII/EOBD diagnostic functions and meets communication standards such as ISO9141-2, ISO14230-4, SAEJ1850 and ISO15765-4, and provides user the access to commonly-used diagnostic functions, as well as data printing via PC and data record and replay function.
CR601 Features
Brand-new process design
Color screen and light weight
Connector with unique protection design to prevent fracture
User-friendly shortcut keys to enhance the work efficiency
1. Support all 10 test modes of OBD II
Read dynamic data streams and MIL
Read readiness status
Read freeze frame data
Read current DTCs
Clear DTCs
O2 sensor test
On-board monitor test
Read pending DTCs
On-board system or component control
Read vehicle information
Read permanent DTCs
2. Color graphical display of data streams
3. Built in DTC help information
4. Free PC upgrade via internet
5. Multilingual support
6. Record and playback Live Data
7. Print data via PC
CR601 Parameters
● Screen: 2.8”
● Voltage range: 9~18V
● Operating Temperature: 0℃~50℃
● Environment Temperature: -20℃~70℃
● Size: 142X85X30mm
● Weight: < 320g
