Description
FEATURES
Intelligent Diagnostics
1. Intelligent diagnostics includes read/clear DTCs, live data streaming, etc.
2. Support CAN FD and DoIP* communication protocols.
3. 10 advanced service functions.
4. Pre-scan and post-scan diagnostic report.
5. Wireless and wired diagnostic.
6. One-stop Info Center includes vehicle repair information and latest updates.
7. Support diagnostic history reviewing.
Advantages
1. Supports VW/AUDI MQB platform engine ECU replacement or cloning (Read engine ECU data directly from the key).
2. Supports VW/AUDI MQB platform gearbox ECU replacement or cloning.
3. Supports ECU replacement for fifth-generation Audi (0AW/0B5) gearboxs.
4. Supports reading, writing & cloning of the ECU for fourth-generation VW UDS engines.
5. Supports BMW E chassis 8HP gearbox ECU program wiping.
6. Support Mercedes(Engine, Gearbox, EIS) and BMW(Gearbox) ECU anti-theft data erase.
7. Supports 170+ Bosch, 10+ Siemens engine ECU and 18+ gearbox ECU BENCH mode clone.
– Bosch engine ECU: ME17，MED17，EDC17，MEVD17, etc.
– Siemens engine ECU: BMW(MSV90, MSD87, MSD85,MSD81, MSD80), Mercedes(SIM271DE2.0,SIM271KE2.0), VW/Audi(SIMOS8.6x,SIMOS8.5x,SIMOS8.4x), etc.
– Gearbox ECU: DQ200-MQB, DQ250XX, DL501 Gen1,VL381,VGS2- FCVT,VGS-FDCT,DQ400E,DL501 Gen2,DL382-7F,VGS2-FDCT,9G_Tronic,DQ380,DQ381, DQ500,AL551,AL450,AL552,AL951,8HPXX, etc.
Functions
1. Supports key matching/copying, anti-theft IC reading & writing, and ECU reading & writing, etc.
2. Anti-theft modules replacement
Support anti-theft modules replacement of BMW, Mercedes-Benz, VW/Audi, Honda, Nissan, Hyundai, Kia, BYD, Changan, Wuling Baojun, GAC, SAIC Maxus, Great Wall Motor, Chery Car, Dongfeng Fengxing, JAC Passenger Car, etc
3. Anti-theft password reading
Supports the anti-theft password reading of Peugeot Citroen, GM, Nissan, Hyundai, Kia, Chery Cars, Dongfeng Fengxing, JAC Passenger Cars, etc.
4. Key Matching
Support key matching of Ford, GM, Mercedes-Benz, BMW, VW/Audi, Porsche, Peugeot Citroen, Land Rover Jaguar, Honda, Toyota, Nissan, Hyundai, Kia, BYD, Changan Automobile, Wuling Baojun, Great Wall Motors, Chery Cars, JAC Passenger Cars, etc.
SPECIFICATIONS

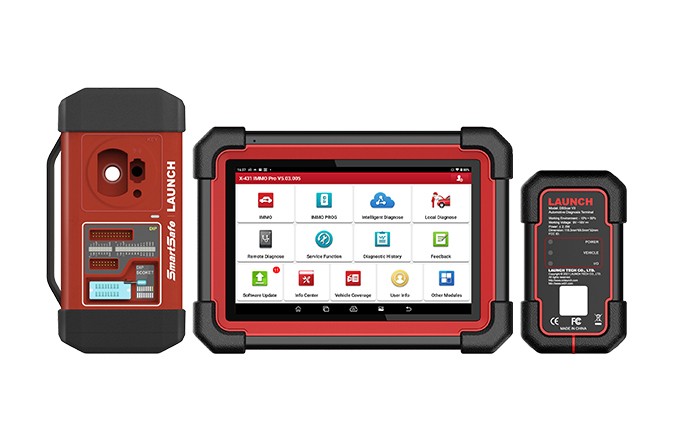

X-431 IMMO PRO Tablet
| Processor | 2.0GHz, Quad-Core |
| Operation System | Android 10.0 |
| Memory | 4GB |
| Storage | 64GB |
| Battery | 47.88Wh (7.6V,6300mAh) |
| Display | 8′, 1280*800 |
| Camera | Rear 8MP |
| WIFI | 2.4GHz / 5GHz |
| Interface | TYPE A *1 & TYPE C*1 |
| Work Temperature | 0~50℃ |
| Dimension | 234 x 166 x 39.5mm |
DBSCar VII
| Working Voltage | DC 9 – 18V | |
| Working Temperature | 0~50℃ | |
| Communication | Bluetooth | |
| Indicators | Power | ON: Connect to a vehicle |
| Vehicle | Blink: When VCI is communicating with vehicle’s ECU | |
| IO | Blue: Bluetooth communication between vehicle and VCI
Red: Wired USB communication between vehicle and VCI |
|
| Dimension | 118.3 x 69.5 x 32 mm | |
X-PROG3
| Interface | DB26, DB15 |
| Input Voltage | DC12V |
| Input Current | 500mA |
| Working Temperature | 0-50℃ |
| Storage Temperature | -20-70℃ |
| Vehicle Key Slot | To place car key for RF defection |
| DB26 | Used to connect to each anti-theft cables |
| Infrared Slot For Benz Key | Used to place the Mercedes-Benz infrared key to perform the key matching function |
| Key IC Hole | Used to place the key chip to perform the key matching function |
| Status Indicator | Power supply indicator lamp |
| DIY Slot | Used to connect the anti-theft ECU pin through the cable to read and write data |
| Locker | To tighten loose EEPROM board |
| DC 12V | Used to connect to the DC12 power supply |
| DB15 | To connect with vehicle’s DLC |
| EEPROM Slot | To insert EEPROM board |
