₦100,000.00

The Cable Tracker is designed to identify and trace wires or cables within a group without damaging the insulation. For telephone line,it can identify some state in the line,and more convenience to install, debug, maintain telephone line. There are a Sender(MS6812-T)and a Receiver(MS6812-R) included in The Cable Tracker.

Description

1 Judge continuity of the cables or wires.
2 Track the cables or wires,and diagnose the break point.
3 Receiver the tone signal on the cables or wires(telephone line).
4 Identify the state in the working telephone line(clear,ring,busy).
5 Send a single solid tone to the object cables or wires.

NOTE: The line to be tested must not be in a state to be electric, or the signal interference will affect the detection results.

Specifications:
Send tone frequency: 1.5kHz
Receive frequency range: 100 ~ 300 kHz

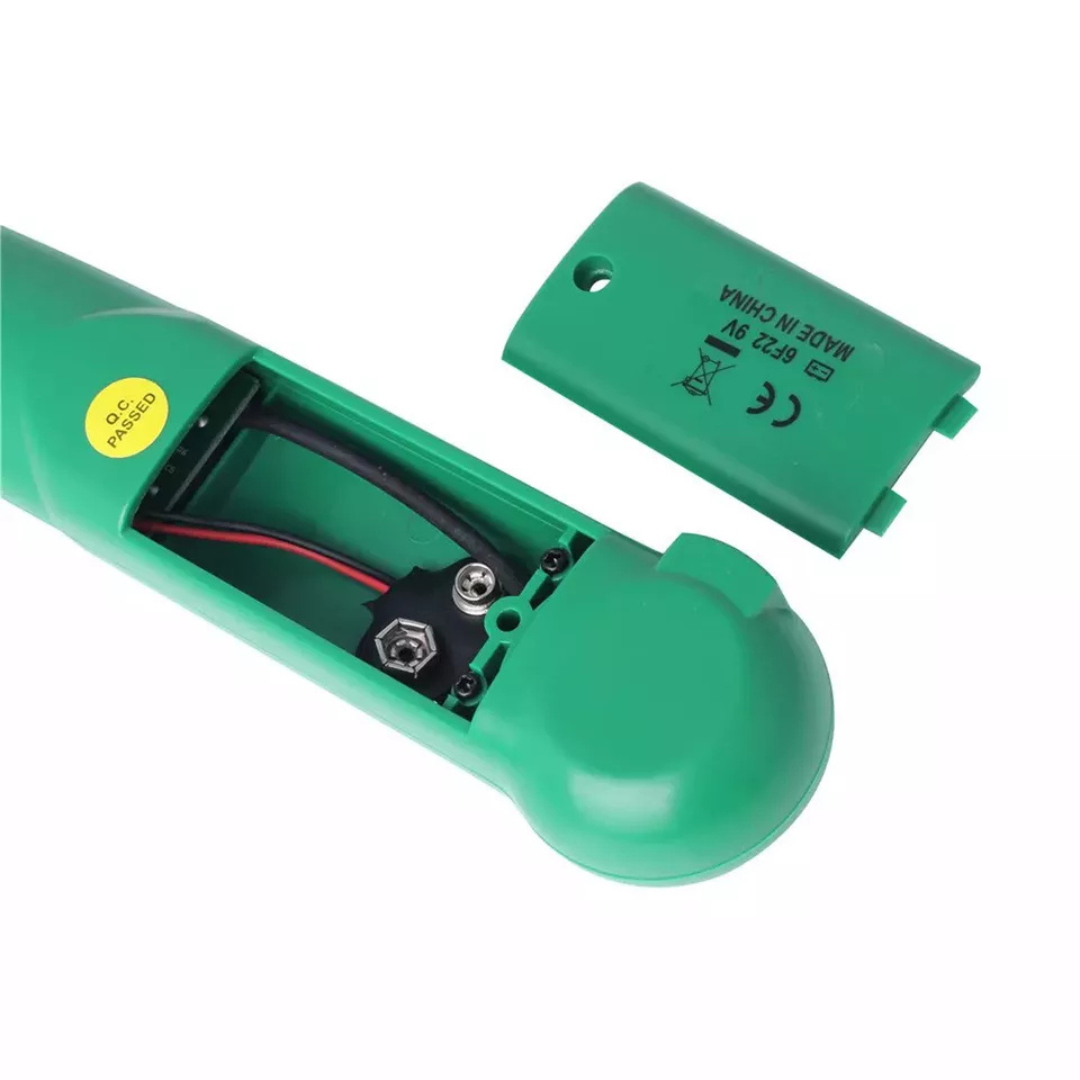

Power supply: 9V batteries (included)
Receiver size: 23.8 x 4.3 x 2.6cm
Emitter size: 14.5 x 3.5 x 2.5cm
Receiver weight: 106g
Emitter weight: 114g
Package size: 25.5 x 12 x 4cm
Package weight: 371g

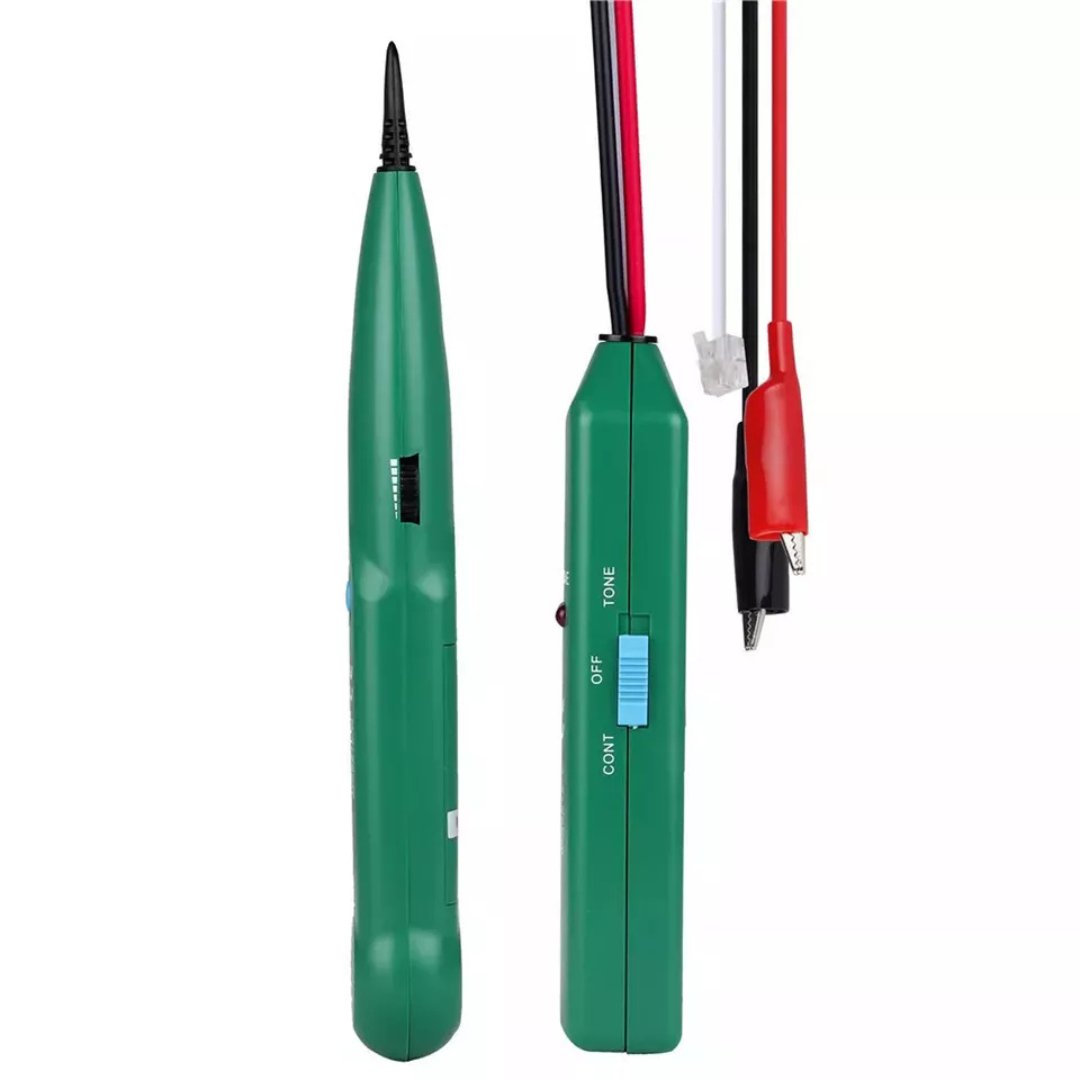

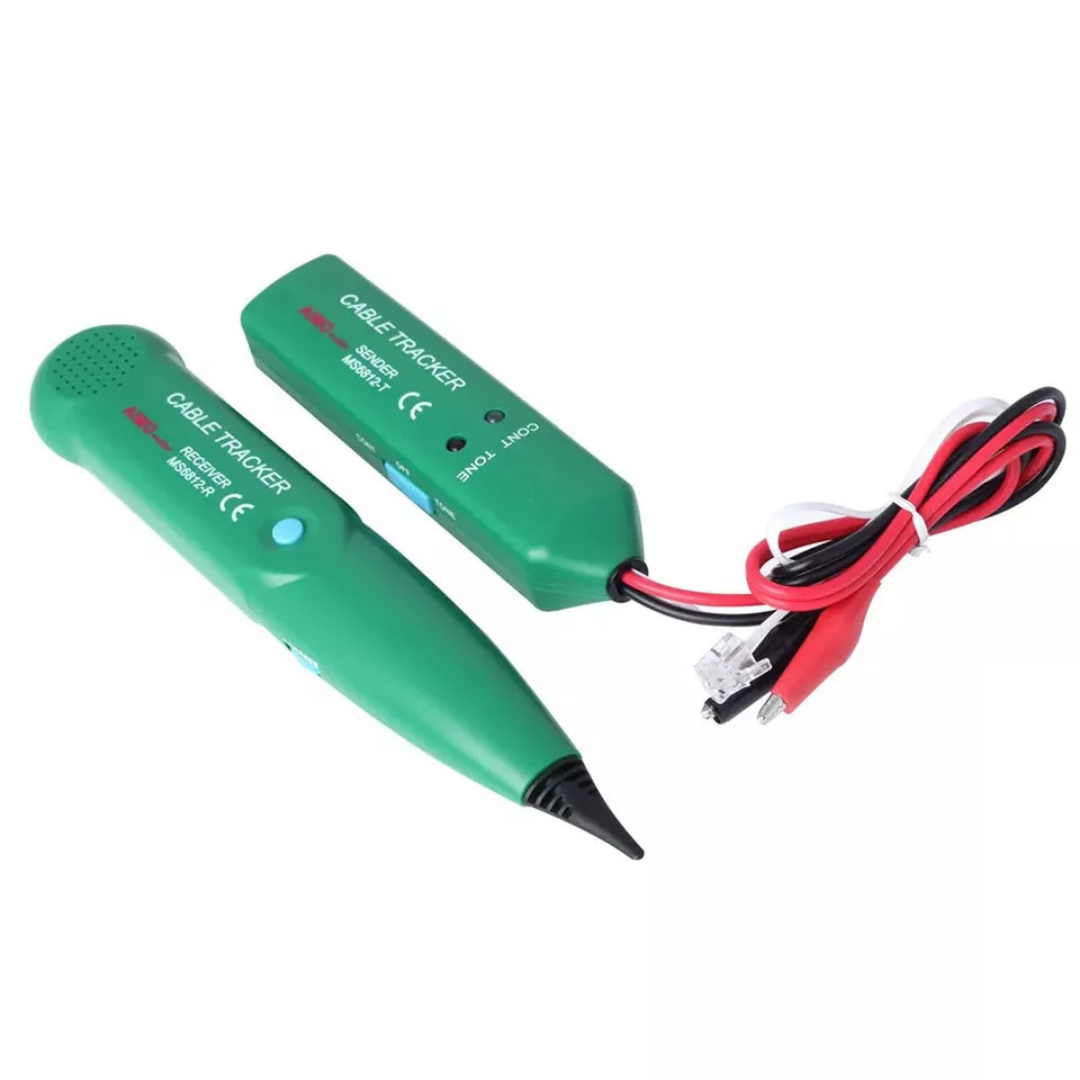

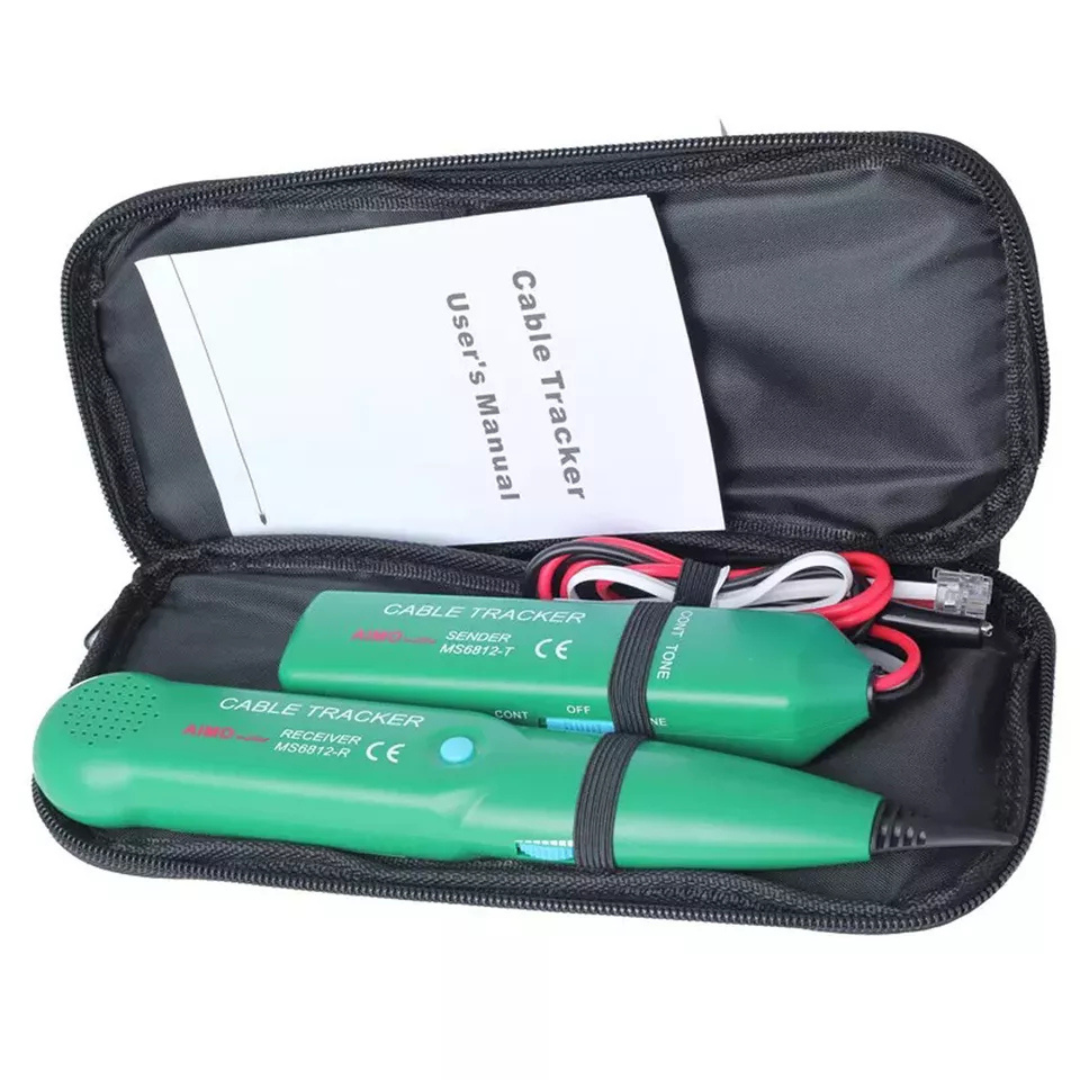

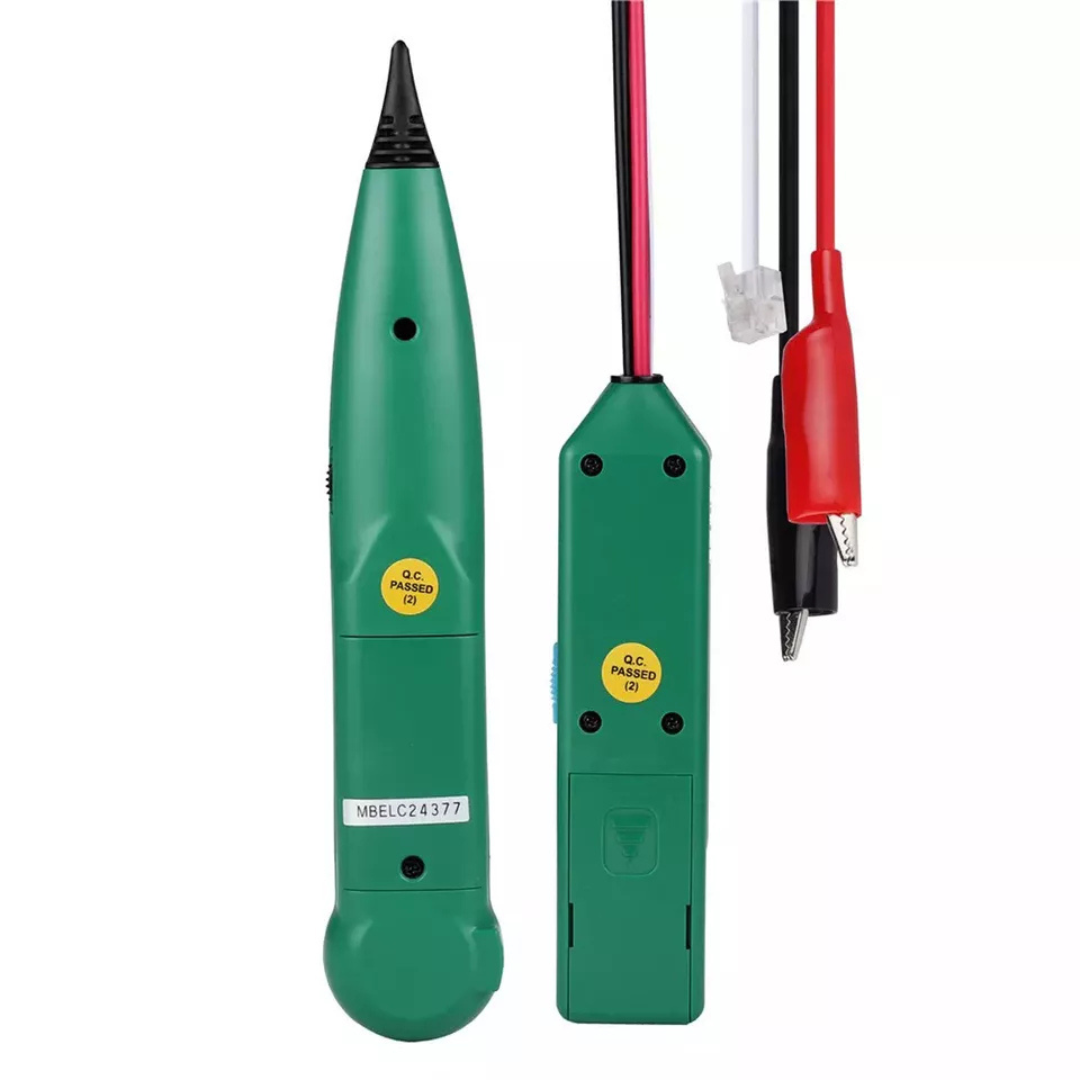

Including a Sender MS6812-T and a Receiver MS6812-R

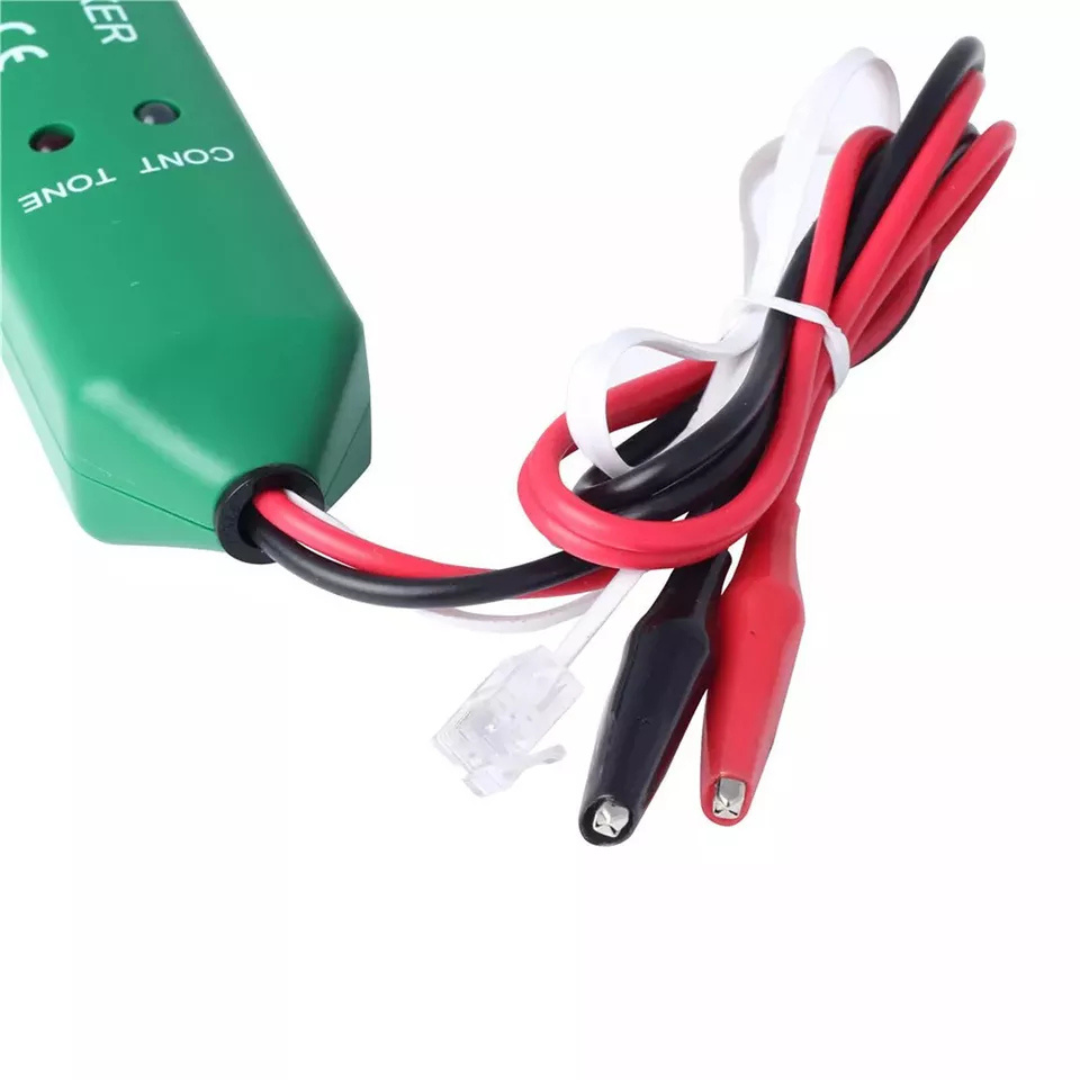

With RJ11 connector cable (about 40cm) on the Sender for plugging into the telephone line jack to be tested
With 2 Alligator clips (Cable length: about 70cm) for clip on the cable to be tested directly
