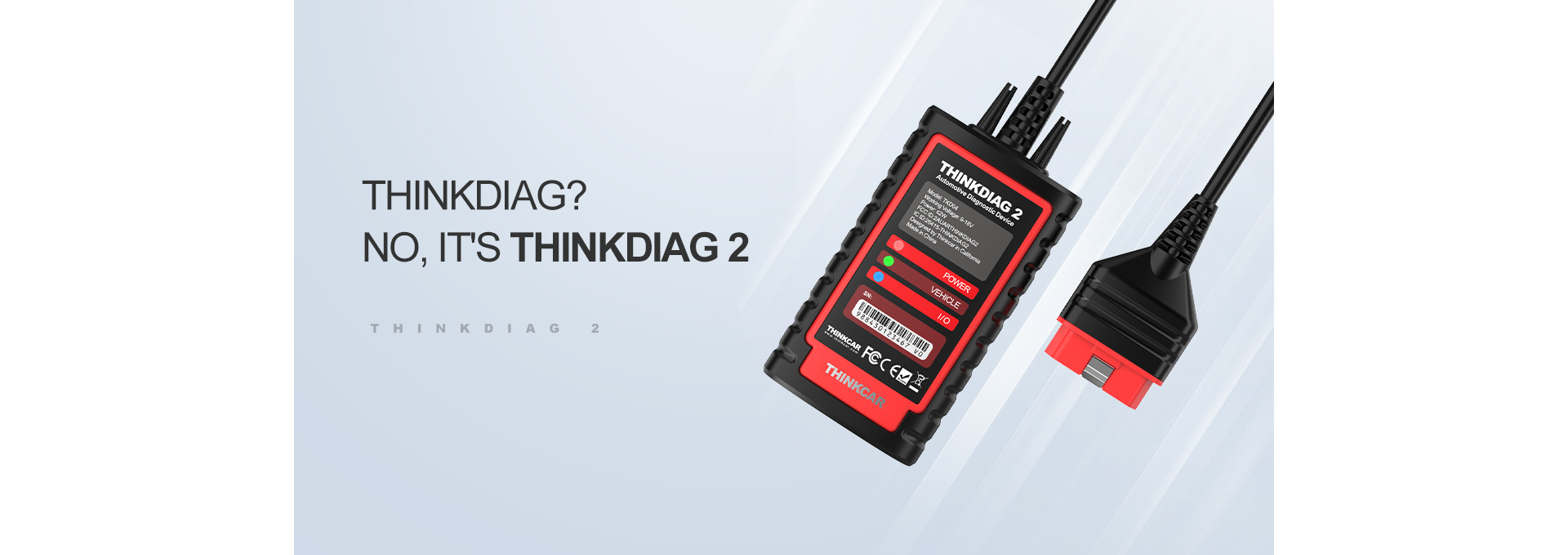

Thinkdiag 2

Description

The Upgraded Version of Thinkdiag

THINKDIAG 2 supports CAN-FD protocol, more than Thinkdiag protocol; THINKDIAG 2 has 5.0 Bluetooth, Thinkdiag is only 4.2 Bluetooth; THINKDIAG 2 has a double-sided indicator lights, upgraded soft rubber sleeve, and obd2 data cable.

Full Systems Bluetooth OBD2 Scanner: Compatible with Android and iOS. Support OBD2 10 functions and all system diagnostic functions, perform testing and maintenance functions of ECM, BCM, SRS, TCM and BMS, TPMS, SAS, A/C system, etc.

Smart Diagnostic Tool: The Auto VIN feature enables it to automatically recognize most car models. After a diagnosis is complete, the system automatically creates a full system vehicle health report, which can be shared and printed via email. The 4-in-1 data graph can better monitor vehicle performance and analyze abnormal parameters.

With 15 Reset Functions: ThinkDiag 2 has Oil Lamp Reset/Injector Coding/ABS Bleeding/DPF Regeneration/Throttle Adaptation/Brake Reset/TPMS Reset/SAS Reset/Battery Matching/Immobilizer Matching/Gearbox Matching/AFS Matching/Suspension Matching/ETS Reset/Sunroof Initialization.

Bidirectional Control & ECU Coding: Through the APP (ThinkDiag+), the ThinkDiag Bidirectional scanning tool can perform special functions on some compatible cars. With two-way control, you can test different systems or open and close valves in the vehicle to troubleshoot internal problems. CAN-FD Protocol now adds more models!

Specifications:
Support System: Android & IOS
Bluetooth: Hardware supports 5.0BLE, Bluetooth dual mode
Diagnostic Interface: DB15
Working Voltage: 12V
Working Temperature: -10℃~50℃
Storage Environment: ﹣20-60℃
Overall Size: 120.5mm*65mm*29mm
Shell Material: ABS+PC+TPU rubber sleeve
Length of OBD Cable: 0.65 meter
