Description

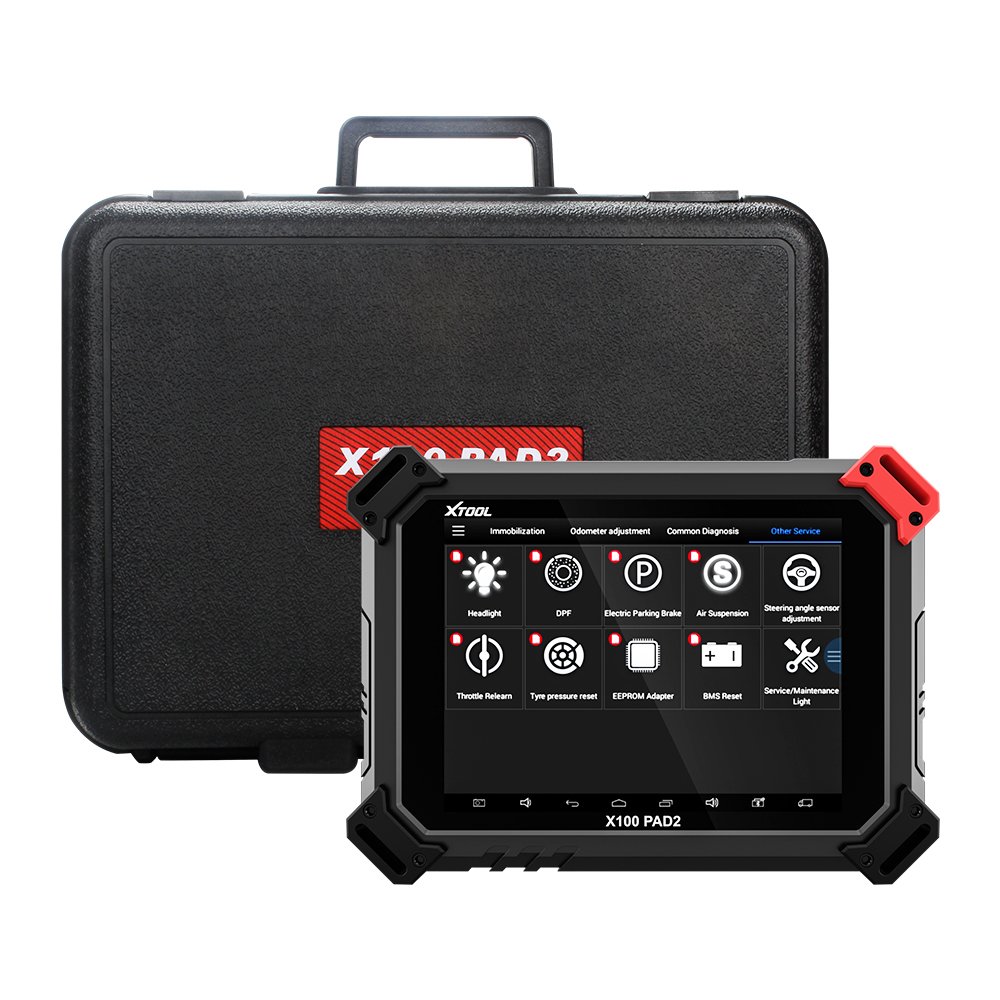

X100 PAD2 Special Functions Expert
X100 PAD2 not only provides customers with professional key programming, but also the most needed special functions for workshop. X-100 PAD2 is a tablet with the latest technologies to perform key programming, mileage adjustment, oil service light reset, timing belt service light reset, tire pressure warning light reset, EPB reset, throttle body reset, DPF reset, battery reset, steering angle calibration and OBD-II engine diagnosis.
Functions
- Immobilizer
- Mileage Adjustment
- Special Functions
- OBD-II Diagnosis
- Service Light Reset
- EPS
Parameters
- CPU：Quad Core, 1.6 GHz
- Operating Temperature：-20 to 50℃(-4 to 126℉)
- Display：8.0 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution
- Bluetooth：100 Meters
- Operating System：Android 4.4.4
- Power Consumption：29.6W
- Sensors：Gravity Sensor, Light Sensor
- Memory：1GB RAM，16GB Flash
- Dimension：(L*W*H): 240*177*30mm
- Wi-Fi：WIFI 2.4Ghz
- Humidity：<90%
- Battery：4000mAh, 7.4V
- Power Voltage：12V
Main Units
- EU Power Adapter
- Type-C cable
- USB Type-C to Mini USB cable
- US Power Adapter
- DC12V(AC100~240V) 3A Charger
- EEPROM
- X-100 PAD2
Test Connectors
- HYUNDAI/KIA-10
- DB15Male To VGA_Male
- MAZDA-17R
- KIA-20
- HONDA-3
- OBD II-16
- USBTYPE-C
Accessories
- Packing List
- Carton
- User Manual
- Certificate of Quality
