Description

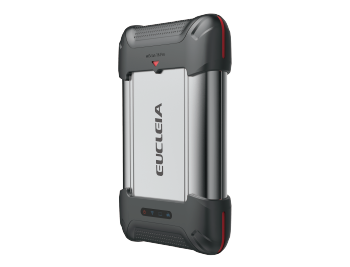

wiScan T6 Pro Auto DoIP J2534 Diagnostic Programming Tool, it is developed by EUCLEIA based on J2534, PDU and DoIP diagnostic technology. The wiScan T6 Pro is equipped with abundant configurations, like high-speed processing module, RJ45, USB, High-speed Bluetooth and external input voltage etc.Innovative DoIP Ethernet diagnostic technology support multi-channel, multi-protocol, high-speed communications, powerful adaptation , as well as Enrich the full three – protective design of streamlined ergonomic, laid the high-end original diagnosis and programming benchmark position.
Features
Compatible with J2534 standard interfaces
Supports numerous OEM diagnostic software such as Volkswagen, Jaguar Land Rover, Volvo, Honda, Toyota, etc.
Equipped with high performance processor and perfectly compatible with the original diagnosis function
Network upgrade support
Rugged design can be used in a variety of harsh environments
Supports OEM diagnostic software and diagnostic function
Support protocols
ISO9141(K-Line)
ISO14230-2 (K-Line)
ISO15765 (CAN)
SAE-J1850 PWM (Ford SCP)
SAE-J1850 VPW (GM Class2)
Single line CAN(GMLAN)
Specification
| Processor | ARM 32bit Cortex M3 | |
| Flash | 512KB | |
| RAM | 128KB | |
| Connection mode | The main test line connected with the car, and USB connected with PC | |
| Interface | DB15，Double row joint | |
| Connectivity | USB Type-B,USB 2.0, FS | |
| Standard |  *Fully compatible with SAEJ2534-1 and SAE J2534-2 *Supports OEM Diagnostics software |
|
| Support protocols | ISO9141(K-Line)
ISO14230-2(K-Line) ISO15765(CAN) SAE-J1850 PWM(Ford SCP) SAE-J1850 VPW(GM Class2) Single line CAN(GMLAN) |
|
| Packing size (mm) | 286mm*196mm*93mm | |
| Product dimension (mm) | 145mm*85mm*29mm | |
| NW | 200g | |
| GW | 1400g |
Packing list
| Items | Â | Specification | Â | Â Â Quantity |
| Tool box | Â | To store the mainframe, test line, warranty card , etc | Â | Â Â 1 |
| Warranty card | Â | Certificate of warranty | Â | Â Â 1 |
| wiScan T6 device | Â | Diagnostic tool | Â | Â Â 1 |
| Main line |  | 1.5m length，Used to connect to the host and car OBD diagnosis |  |   1 |
| Quick start guide | Â | Guide users quick start to use | Â | Â Â 1 |
| USB cable | Â | 1.5M | Â | Â Â 1 |
