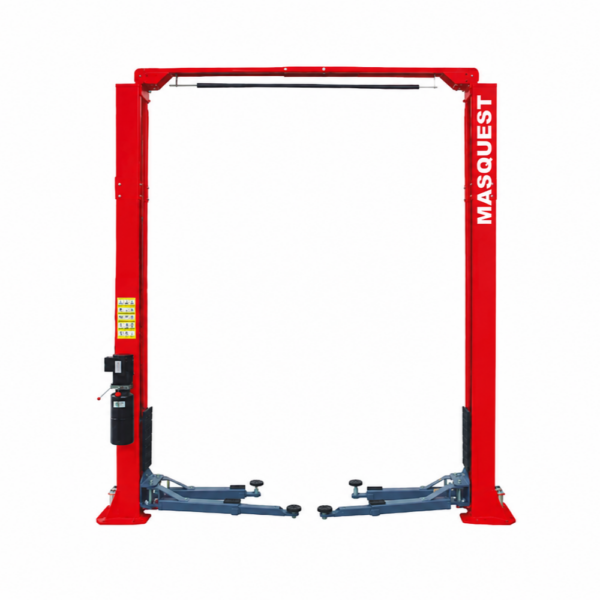

Masquest MLT-240SC Two Post Clear Floor Lift

$2,407.50 USD

Practical Double Hydraulic Two Post Lift

With double hydraulic cylinders and high strength chain drive, the 4000KG load capacity two post lift TLT240SC guarantees a stable and smooth lifting and lowering. Its patented slider bracket design improves the replacing efficiency.
As the first priority, safety has been considered from design to manufacture. TLT240SC is equipped with bilateral manual safety unlocking system, 24V low voltage control box and cylinder travel limit switch. It is CE certified.

Description

Bilateral manual safety unlocking system.
The cable and oil pipe are fully concealed; with decent and elegant appearance.
Double hydraulic cylinder and high strength chain drive makes stable and smooth lifting and lowering.
Wire rope equalization system forces synchronous movement of two carriages and effectively prevents vehicle from tilting.
24V low voltage control box (IP54 level) ensures operator’s safety.
24V cylinder travel limit switch effectively protects cylinder and extends its lifespan.
Door rubber pad protects car door from being damaged in collision.
More lifting pads with different height meet the requirements for light lorries and SUVs.
Passed 115% dynamic loading test and 150% static loading test.
CE certificated.
Symmetric and asymmetric installation types are optional. (For SC model).

Specification:

Rated Load	4000kg
Lifting Height	1850mm
Initial Height	110mm
Lifting Time	≤50s
Lowering Time	≥20s, ≤40s
Passing Width	2486mm
Overall Width	3370mm
Overall Height	2860mm
Motor Power	2.2kW
Motor Voltage	3 phase/380V or Single phase/220V
Working Noise	≤75dB(A)
Working Oil Pressure	16MPa
