Description
- Introduction: This Multi-function Automotive Circuit Tester designed for automotive electrical and line maintenance and testing. Can be used to test battery voltage value, voltage polarity, conductivity, check lamp, check motor, heel Trace and locate faults such as short circuits and poor ground contacts
- Specificities: The power circuit probe tester uses advanced high-sensitivity probes to provide you with fast and accurate detection. Using this automotive test light can save a lot of time to troubleshoot the car wiring circuit, to quickly and accurately find the faulty wire and its fault point

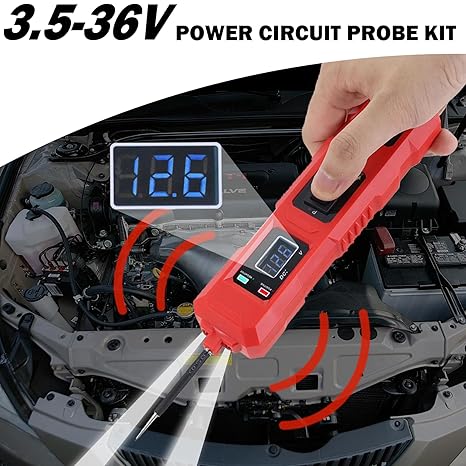

- Reliable and Convenient: Equipped with a 4.5M extended detection line, covering the front to the rear of the vehicle, making it easy to test the entire vehicle circuit system. Equipped with an LCD display that allows the user to easily test voltages in the range of 3.5 V to 36 V and display the values on the screen, making it suitable for various automotive applications. Do not use for all AC and greater than 36V source environment

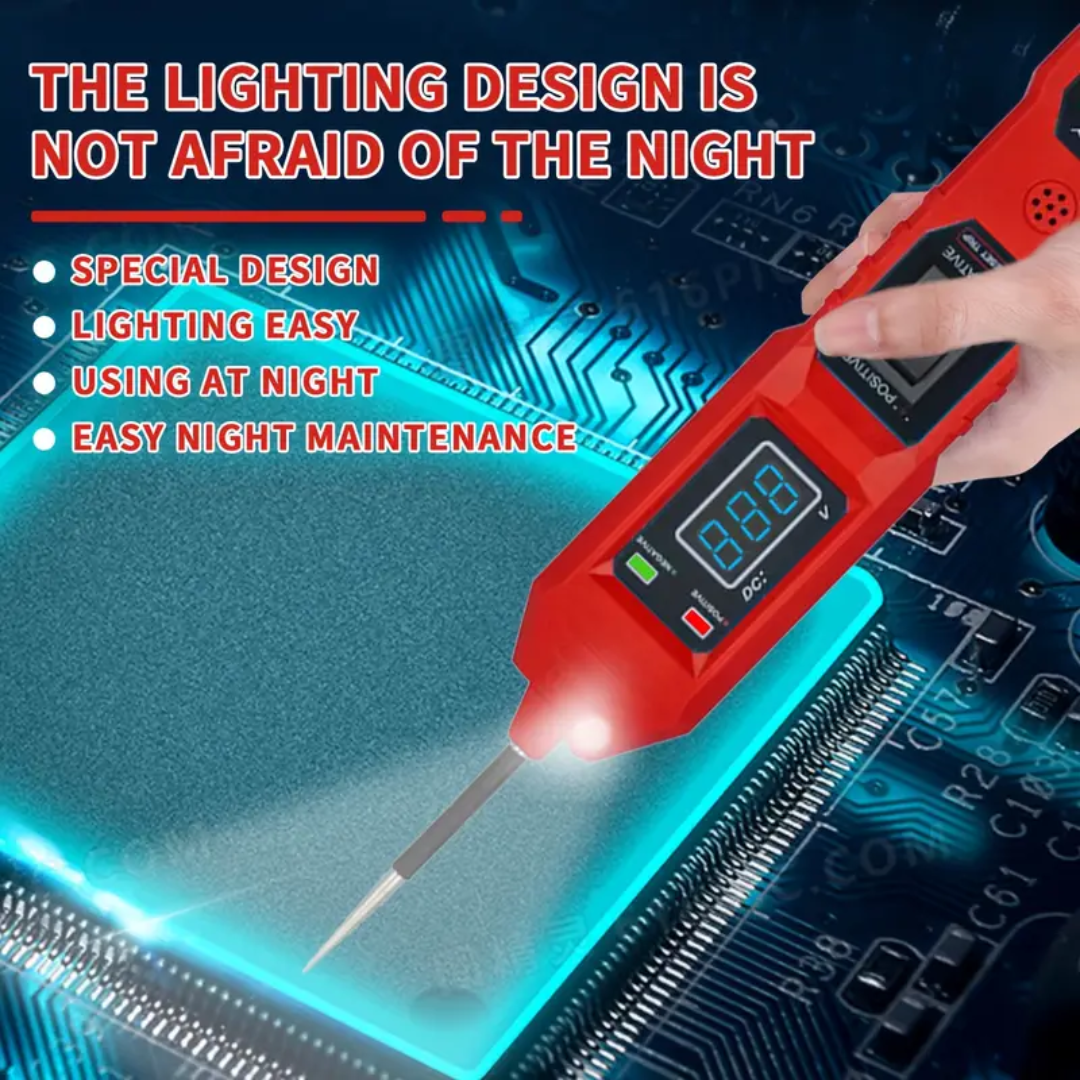

- Added Features: The probe tester has built-in Two-Light Flashlight flashlight, only need to put the red and black clips on the positive and negative clips on the car’s battery the electrode can be used, which is convenient for detection and maintenance in the dark place, and can also be used as a lighting lamp
- Easy to Use: The red clip is connected to the positive terminal of the battery, and the black clip is connected to the negative terminal of the battery; there upon the blue digit shows the current battery voltage value, and turn on the front light; Connect inversely, The voltage value is not displayed, but the lamp is still on.
Product description:

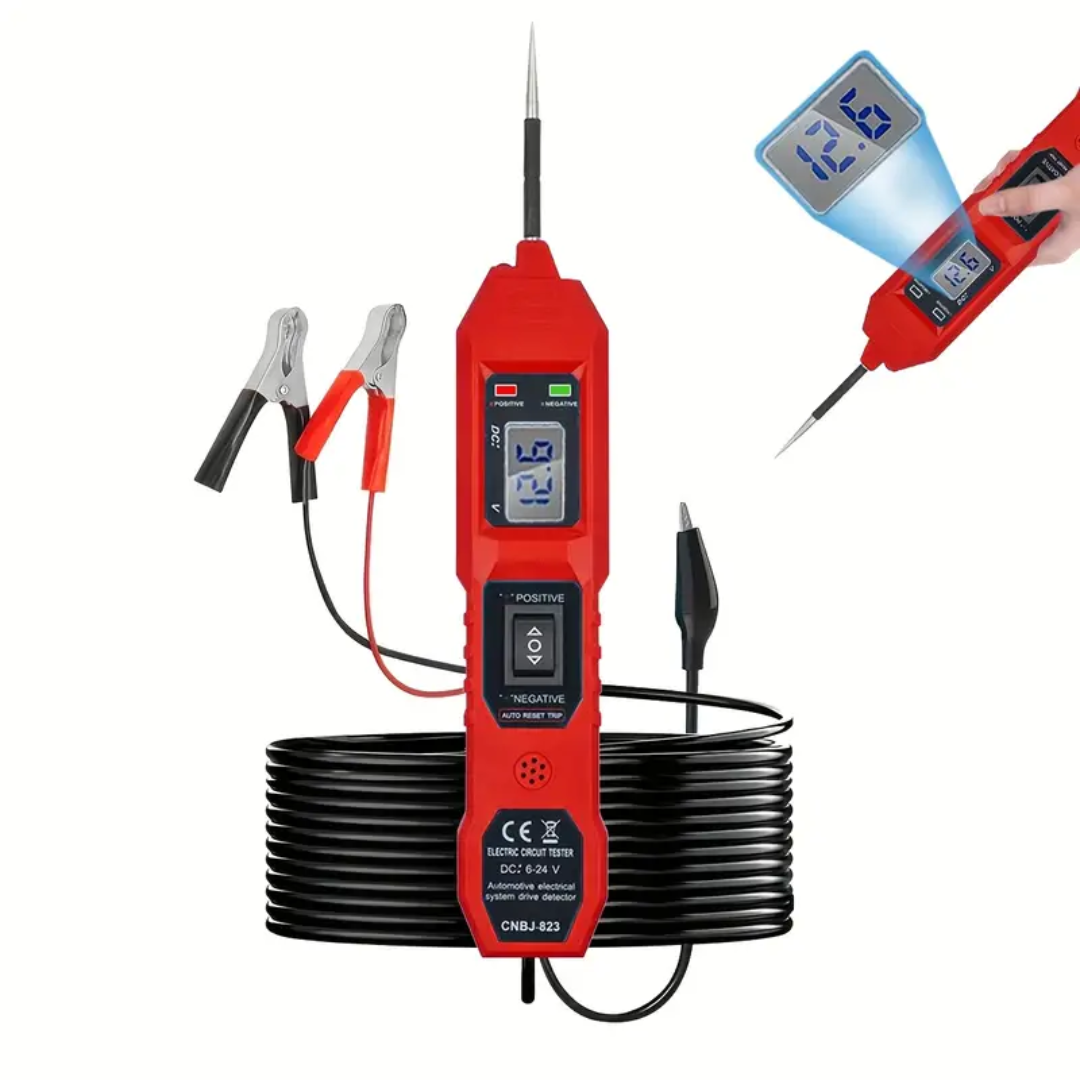

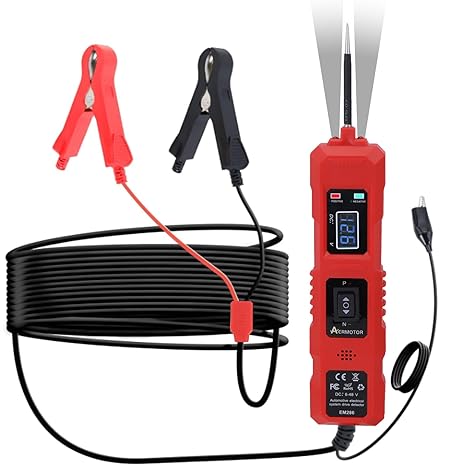

Automotive Multi-function Tester
This Automotive Multi-function Tester is a practical auxiliary tool designed for automotive electrical and line maintenance and testing. Can be used to test battery voltage value, voltage polarity, conductivity, check lamp, check motor, heel Trace and locate faults such as short circuits and poor ground contacts
Tips: Only applicable to 3.5-36V DC environment, do not use for all AC and greater than 36V source environment
Polarity Detection Function:

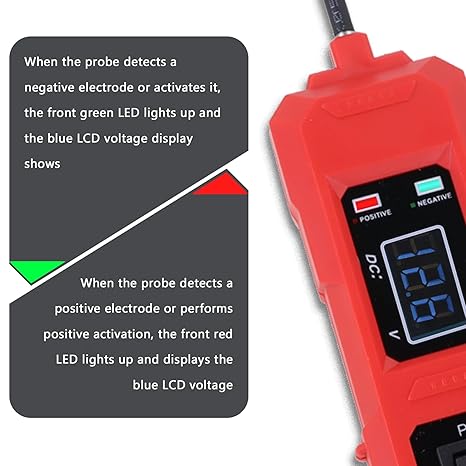

Contact the tester probe with the unknown polarity of the battery contact to be measured. If the LED on the instrument is bright red, Represents the measured contact with positive voltage; if the upper LED is bright green, indicating that the measured contact has a negative electrode voltage
Overload power off protection:
If the current is too large or the load is too large in the power distribution process, the LED will be instantaneous Change from red to green with a buzzer warning that should be disconnected or tested for protection storage battery

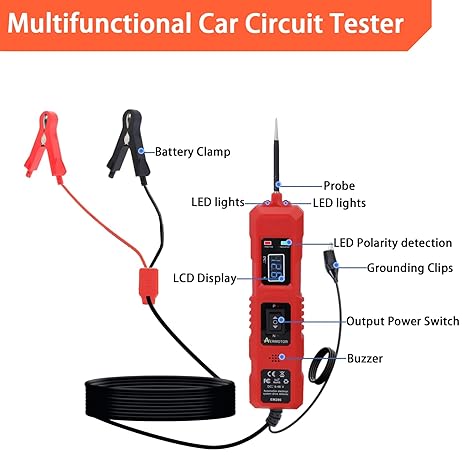

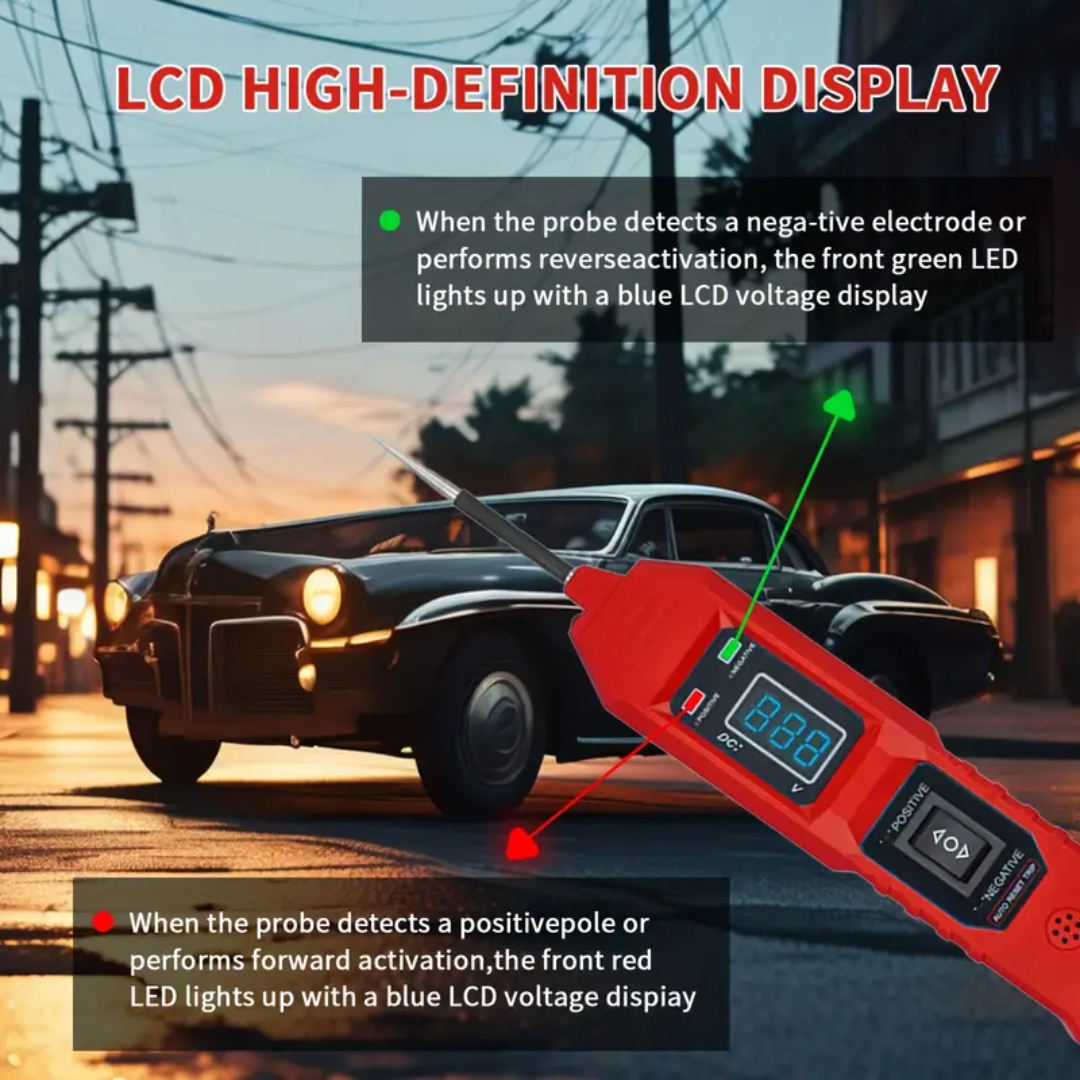

Polarity Indicator:
LED Red light: The probe output positive “+voltage or test positive “+” voltage; LED Green light: The probe output negative “_” voltage or test is negative “_” voltage; LCD display: blue digital display, representing the current voltage value

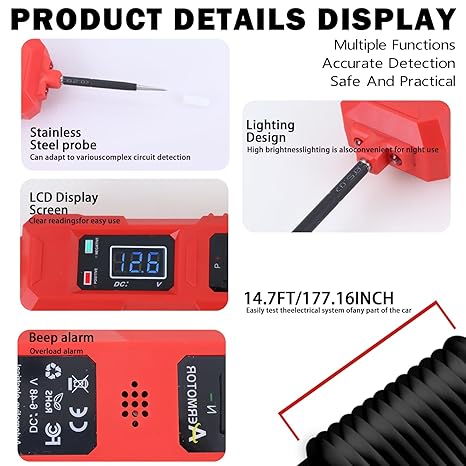

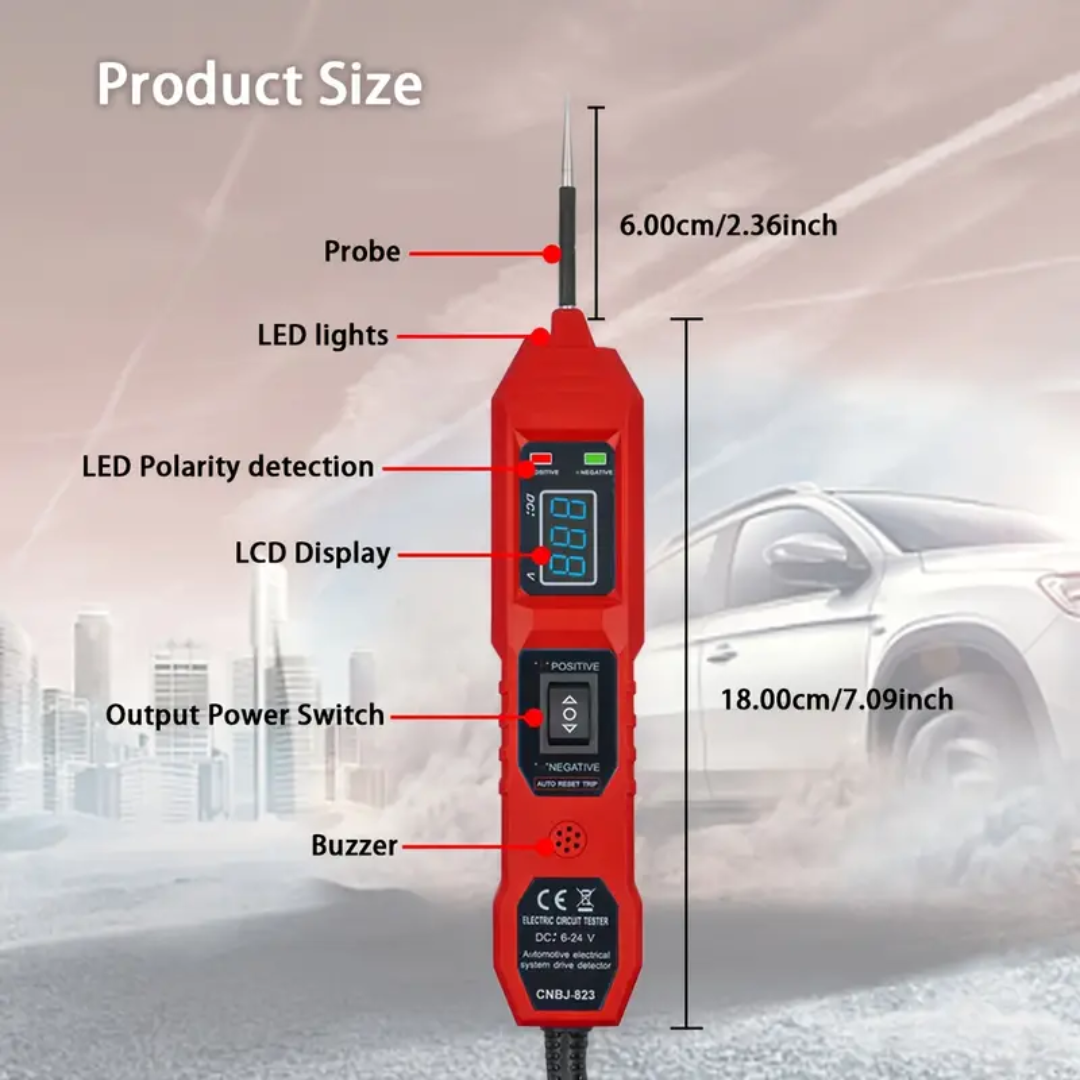

Stainless Steel Probe:
Use the advanced high-sensitivity probe to quickly and accurately detect electrical system problems
Drive switch:
Press “Up” end, probe output positive “+” power supply; Press “Down” end, probe output negative “_” power supply

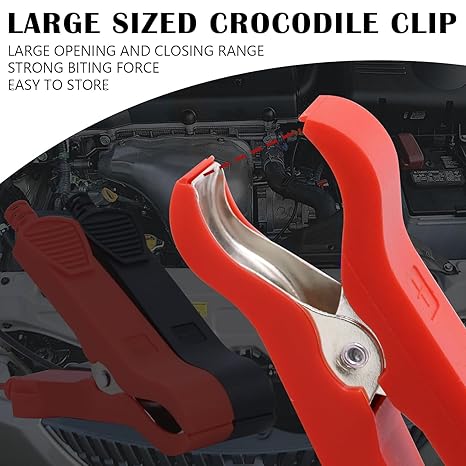

Power Clip
Clamp the input power when it is used
Line length:14.7Ft
Covering the front to the rear of the vehicle, making it easy to test the entire vehicle circuit system
Grounding clamp
Can be used as grounding, Can also be used with output negative
How to use:
( 1 ) Unplug the tester connection wire.
( 2 ) The red clip is connected to the positive terminal of the battery, and the black clip is connected to the negative terminal of the battery; thereupon the blue digit shows the current battery voltage value, and turnon the front light; Connect inversely, The voltage value is not displayed, but the lamp is still on.
