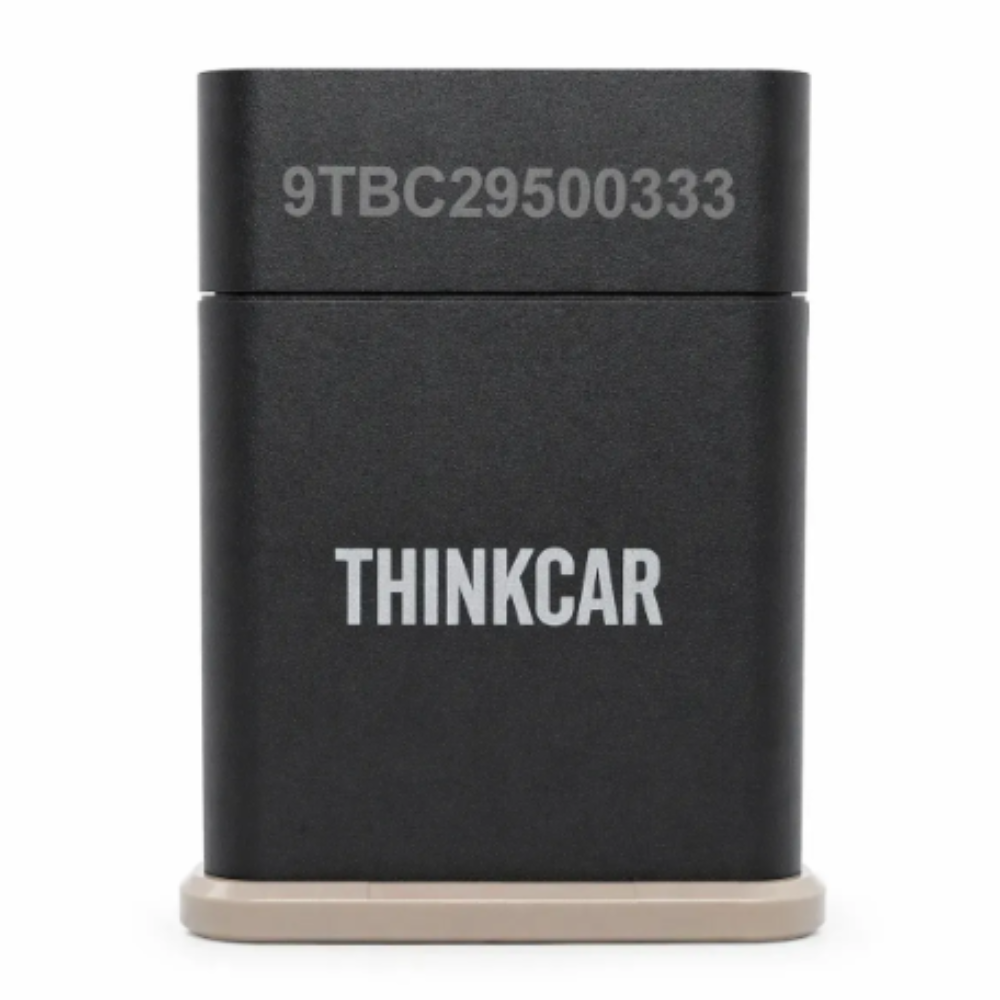

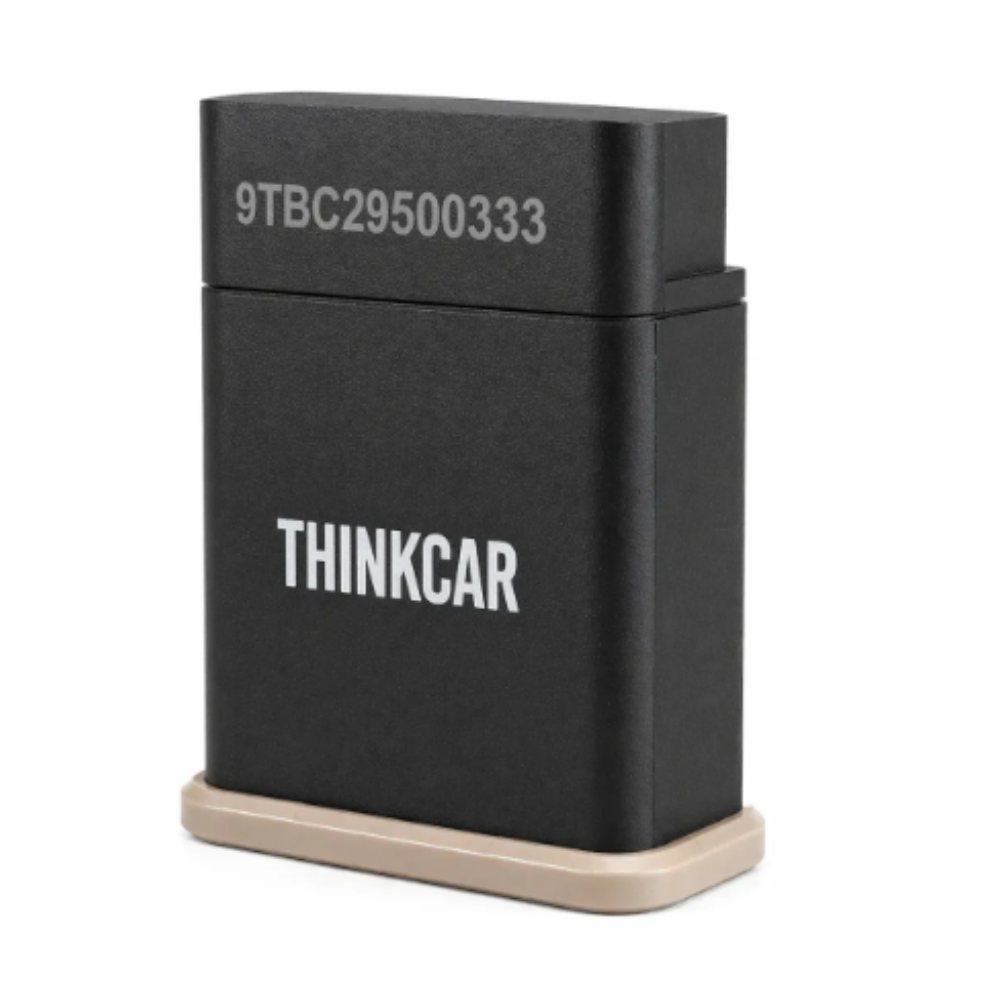

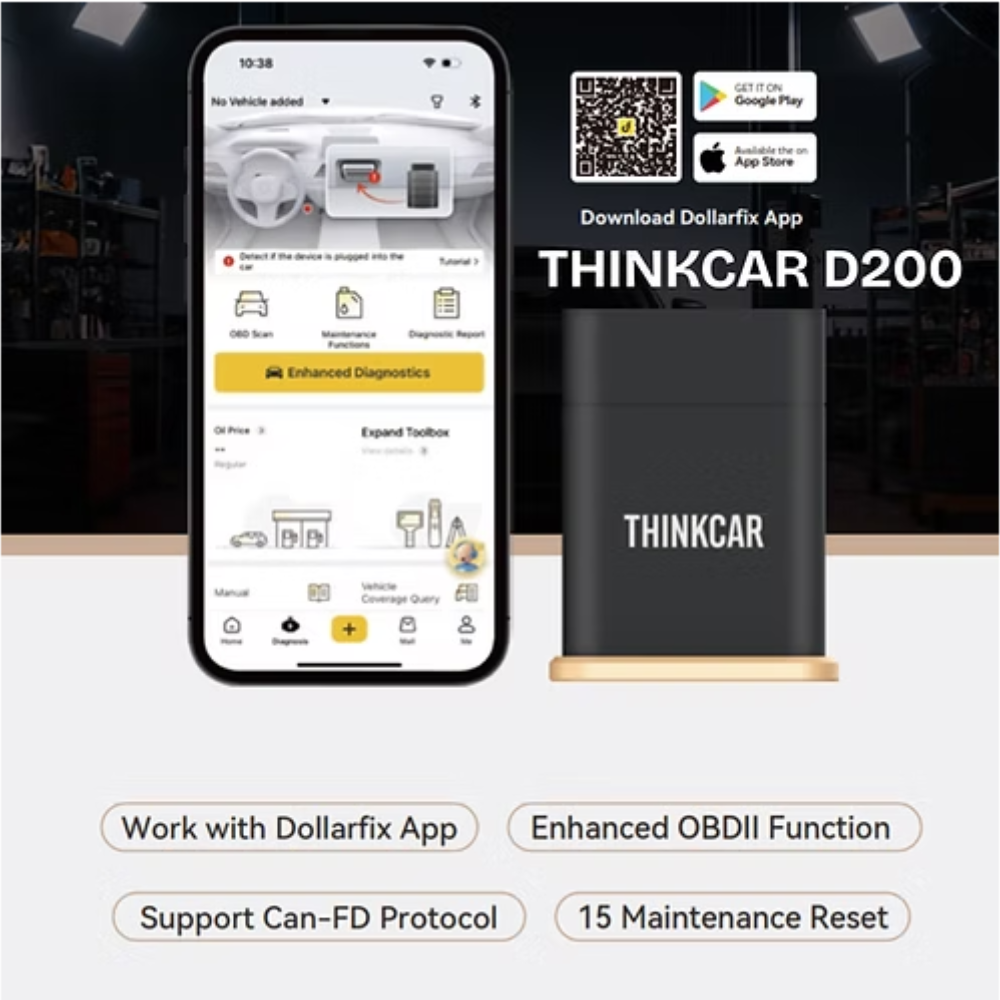

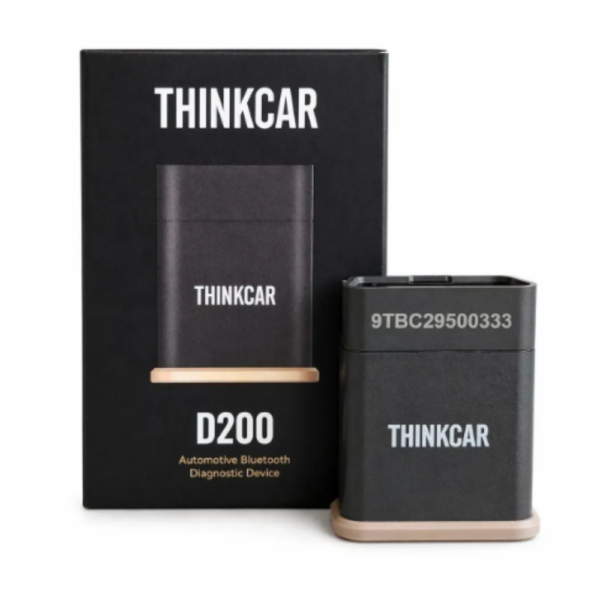

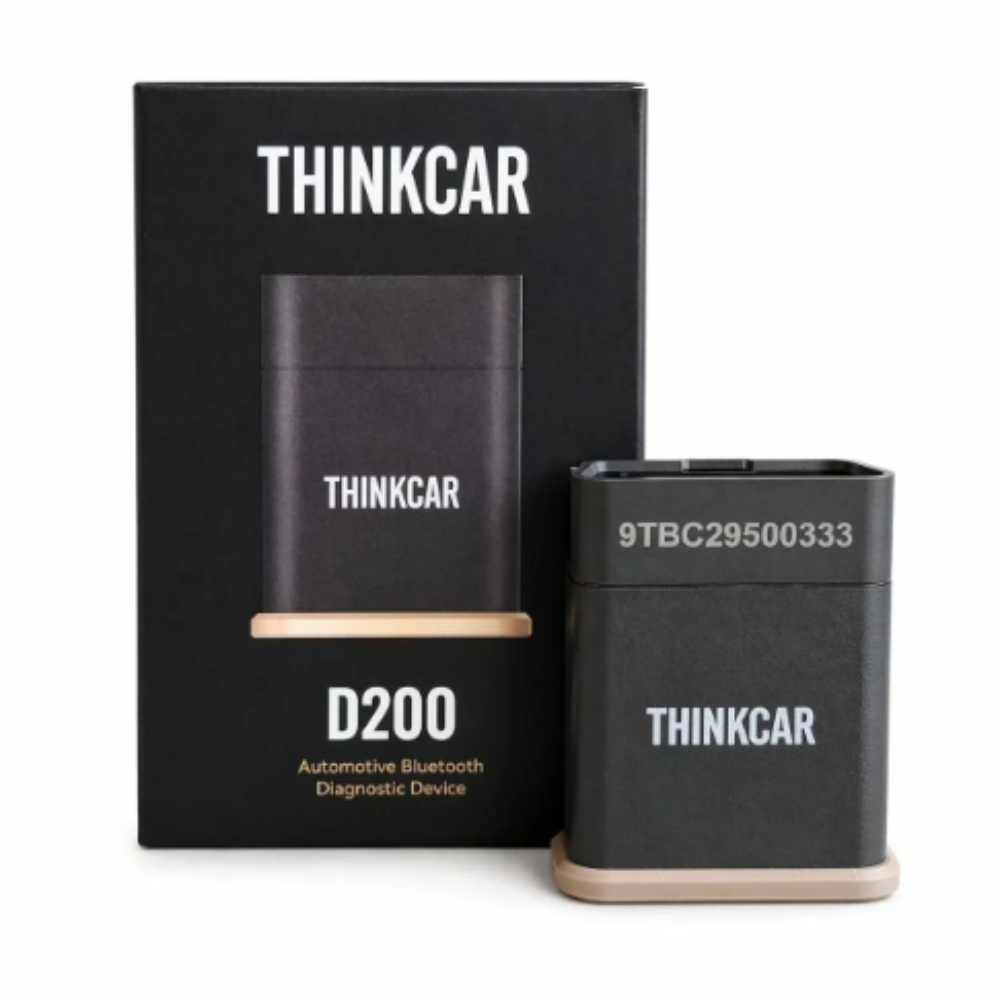

THINKCAR D200

Description

• Support for over 78 brands of passenger cars

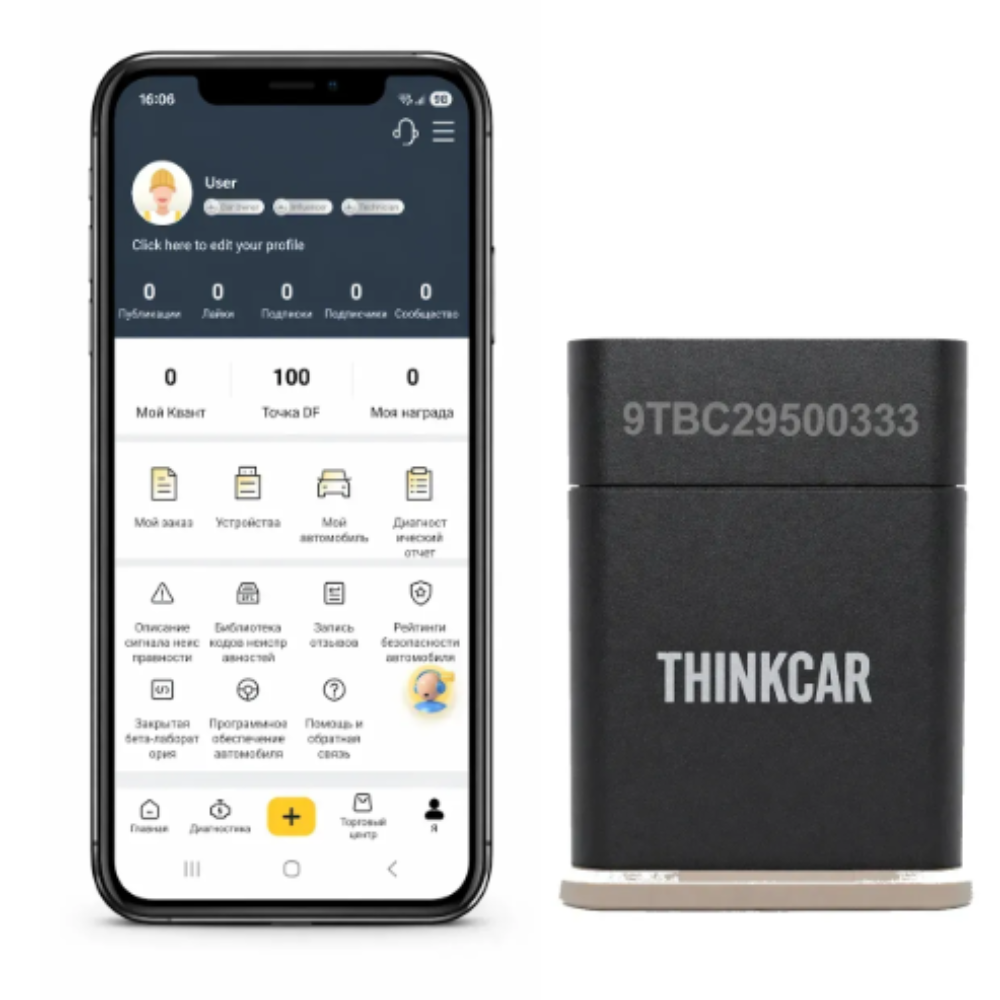

• Working via Bluetooth with a smartphone
• Compatibility with Android and iOS
• Support for modern protocols, including CAN FD
• High speed and stable connection
• Lifetime free software updates
• Certification: FCC, IC, CE, RoHS, CP65

Supported protocols

• ISO 14230-4 (KWP)
• ISO 15765-4 (CAN)
• ISO 9141-2
• SAE J1850 VPW
• SAE J1850 PWM
• CAN FD

Key features of the Thinkcar D200:

• Automatic VIN code reading  – speeds up the diagnostic process;
• Displaying information about the system  – name, catalog number, firmware version, coding, etc.;
• Reading fault codes  – the ability to read and decipher fault codes, in a separate block, or from all in one click;
• Creating error reports  – informative reports allow you to assess the overall condition of the vehicle, understand the causes and consequences, and the report can also be sent to the client via e-mail, instant messengers, etc.;
• Deleting fault codes  – the ability to delete fault codes in a separate block or from all of them in one click;
• Real-time parameters  – the ability to view or record parameters in real time, in text or graphical form, with the ability to overlay graphs;
• Actuator tests – the ability to activate actuators with a scanner to check their functionality;
• Mileage check  – the ability to calculate mileage from all vehicle systems that transmit this information to the electronic control unit;
• History of diagnosed vehicles  – you can always view the history for each vehicle (error reports, screenshots, real-time parameter records, backups, etc.), convenient when working with a large number of vehicles;
• Full support of standard OBD II mode (10 Modes).

Full list of available special features of Thinkcar D200:

1. Reset Oil  – Resetting oil change intervals;
2. Reset ETR  – Throttle adaptation;
3. Reset Brake  – Brake pad reset service;
4. Reset Immo  – Immobilizer service, IMMO keys;
5. Reset SAS  – Adaptation of the SAS steering angle;
6. Reset Bleed  – Bleeding the ABS/ESP brake system;
7. Reset BMS  – Adaptation of the BMS battery;
8. Reset AFS  – Service of the adaptive headlight system AFS;
9. Reset Injector  – Injector coding service;
10. Reset DPF  – Diesel Particulate Filter (DPF) Service;
11. Reset TPMS  – Tire pressure monitoring system TPMS service;
12. Reset Sun Roof  – Sunroof/Panoramic Roof Service;
13. Reset SUS  – Adaptive suspension service;
14. Reset Gear  – Adaptation of the crankshaft position sensor CKP;
15. Reset EGR  – Service of the exhaust gas recirculation system EGR.

Unlike other adapters, where special features are locked after 1 year of use, the Thinkcar D200 keeps them available forever!
